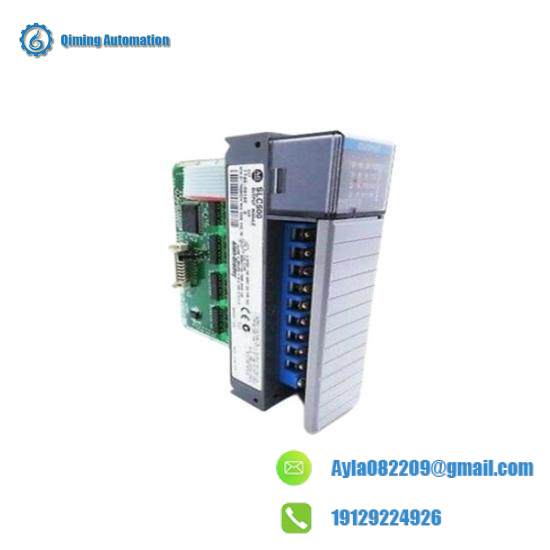

AB 1746-IG16 Digital Input Module, High Performance & Versatile Control Solution

Input Channel:16

Resolution:High

Voltage Range:-20 to +20 VDC

Current Range:-30 to +30 mA

Power Consumption:50 mA @ 5 V, 85 mA @ 24 V

Isolation:500 VDC

Enclosure Type:Open

    The Allen Bradley 1746-IG16 Input Module is a high-performance device tailored for seamless integration into complex industrial control systems. With its robust design and precise signal acquisition capabilities, it ensures reliable operation in demanding environments.

    Featuring 16 individual digital inputs, this module supports a wide range of sensor types, enabling accurate data collection from temperature, pressure, and position sensors. Its compatibility with Allen-Bradley’s SLC 500 series ensures seamless communication within the control system.

    Equipped with advanced isolation technology, the 1746-IG16 guarantees electrical safety by providing a significant isolation voltage of 500VDC between input and power supply. This feature minimizes the risk of electrical interference and ensures the longevity of the system.

    Operating within a broad temperature range of -40°C to +70°C, the module is suitable for use in extreme conditions found in industrial settings. Its compact size (109mm x 90mm x 40mm) and lightweight design (0.4kg) make it easy to install and integrate into existing systems without compromising on performance.

    Designed with ease-of-use in mind, the Allen Bradley 1746-IG16 Input Module offers intuitive setup and configuration options through the ControlLogix family of programmable logic controllers. It supports both analog and discrete inputs, making it versatile for various industrial applications.
