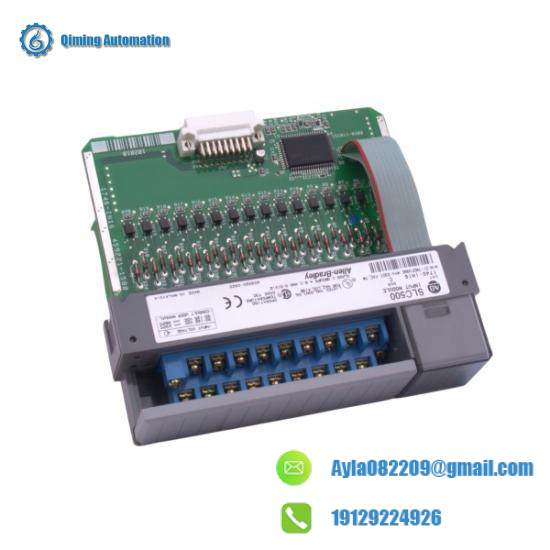

AB 1746-IH16 Current Sinking DC Input Module

Model:1746-IH16

Type:Current Sinking DC Input Module

Manufacturer:Allen Bradley

Channels:16

Input Voltage Range:10 – 30 VDC

Off-State Input Voltage:3 VDC

Nominal Current:8 MA at 24 VDC

Off-State Current:1 MA AC/DC

Isolation:Communication circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% non-condensing relative humidity, shock: 30 G

    The AB 1746-IH16 is engineered for durability and precision, offering exceptional performance in industrial automation tasks. This sinking input module ensures reliable signal acquisition, critical for maintaining operational efficiency.

    Equipped with advanced isolation technology, it provides enhanced protection against external electrical disturbances, ensuring stable operation in challenging environments.

    With its compatibility to Allen-Bradley’s renowned SLC 500 processor, this module seamlessly integrates into existing control systems, facilitating easy setup and maintenance.

    Featuring a compact open-type enclosure, the 1746-IH16 is designed for efficient heat dissipation, enhancing system reliability and longevity.

    Designed for seamless integration, the module supports various mounting methods on the chassis, making installation flexible and adaptable to diverse industrial settings. It is ideal for applications requiring high-speed digital signal processing and robustness against environmental conditions.
