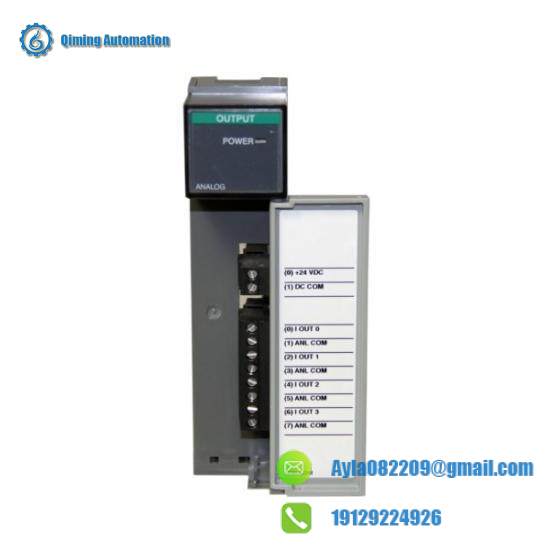

AB 1746-NOI4I – 4 Channel Analogue Output Module

Model Type:Analog Output Module

Manufacturer:Allen Bradley

Model Number:1746-NOI4I

Channels:4

Output Range:0-21.5 mA

Operating Voltage:24 VDC ±10%

Minimum Output Current:300 mA

Current Output Ranges:4-20 mA, 0-20 mA, 0-21 mA, 0-21.5 mA

Current Rating at 5 VDC:120 mA

Current Rating at 24 VDC (with J4 jumper set to rack):250 mA

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Display:Status LED

Connection Cables:24-14 AWG

Mounting:Chassis

    Precision Control: The Allen-Bradley 1746-NOI4I offers accurate current output for a variety of industrial applications, ensuring reliable performance in complex systems.

    Versatile Compatibility: Designed for seamless integration into Allen-Bradley’s SLC500 series, this module supports a wide range of control protocols, enhancing system flexibility.

    Robust Construction: With its open-type enclosure and 500VDC isolation, the 1746-NOI4I ensures durability and safety in harsh industrial environments.

    Easy Configuration: The module’s intuitive design allows for quick setup and adjustment, reducing downtime and simplifying maintenance procedures.

    Comprehensive Monitoring: Through integrated status LEDs, users can easily monitor the health and status of each channel, promoting proactive maintenance strategies.
