Model Type:SLC500
Model Number:1746-INI4VI
Manufacturer:Allen-Bradley
Analog Input Channels:4
Common Mode Voltage Range:-20V to +20V
Absolute Input Voltage:+/-7.5VDC or 7.5VAC RMS (Max.)
Input Range:-20mA to +20mA
Current Range:-30mA to +30mA (Max.)
Voltage Rating:Overvoltage Protection: 7.5VAC RMS
Input Range (DC):-10V to +10VDC – 1LSB
Backplane Current Draw:35mA at 5V, 85mA at 24V
Isolation:Backplane: 500VDC, Enclosure: Open Type

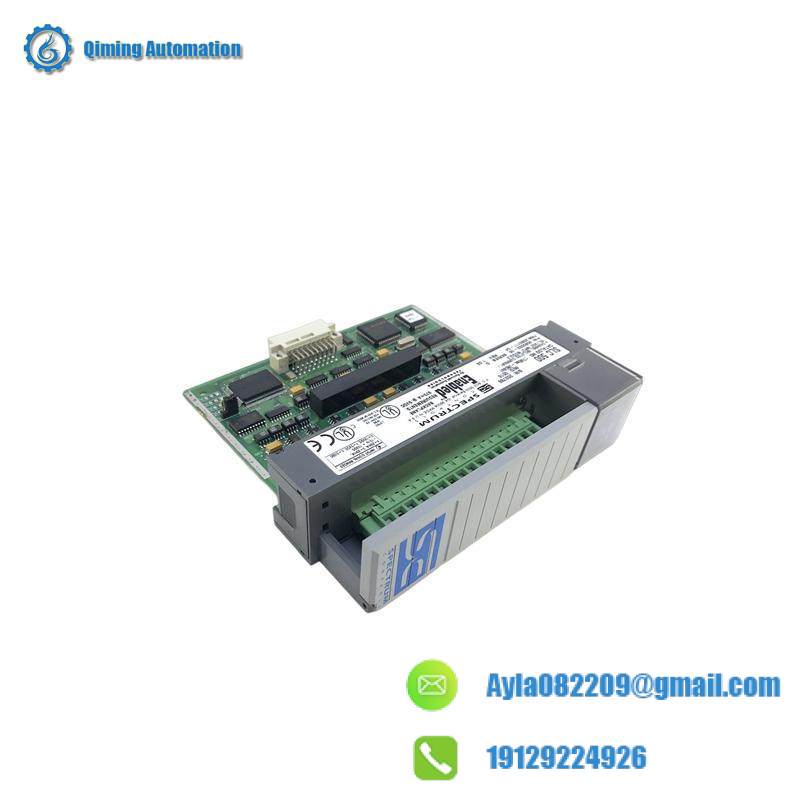

The AB 1746SC INI4VI Analog Input Module offers high-resolution analog input capabilities, essential for monitoring and controlling industrial processes with precision.
It is engineered to handle a wide range of voltage and current inputs, ensuring reliable data collection in diverse environments.
With its robust design and isolation features, this module provides excellent protection against electrical interference, ensuring accurate measurements.
Ideal for integration into SLC500 systems, it supports enhanced functionality through its programmable data and communication capabilities, enabling seamless connection with other devices.
The module’s compact size and modular architecture make it easy to install and integrate into existing control systems, enhancing operational efficiency without compromising on performance.
