Material:High-grade FR-4
Operating Voltage:Up to 400V DC
Operating Current:18A peak
Insulation Resistance:≥ 10MΩ
Operating Temperature Range:-40°C to +85°C
Input/Output Connections:12-pin DIP socket
Dimension:120mm x 75mm
Weight:0.15kg

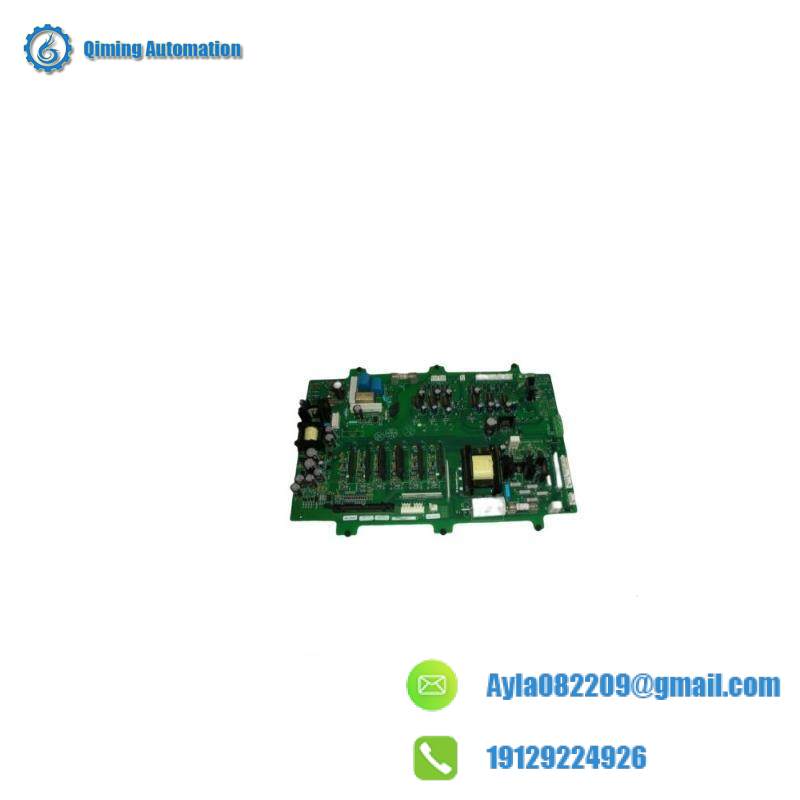

The AB 1336-BDB-SP18D Gate Drive Board is engineered for exceptional reliability and performance in demanding industrial environments. Its robust design allows for seamless integration into complex motor control systems, ensuring stable operation across a wide range of temperatures and voltages.
Equipped with dual channel technology, this board provides independent control over two circuits, making it ideal for applications requiring precise current regulation and enhanced system efficiency. The board is compatible with various power sources and can handle up to 18A of current per channel.
Designed with advanced surface mount technology (SMD), the board offers compact dimensions without compromising on functionality. This makes it a space-efficient solution for modern industrial machinery where space optimization is crucial.
With an operating temperature range from -40°C to +85°C, the AB 1336-BDB-SP18D is built to withstand extreme conditions, ensuring continuous performance in both cold and hot environments. This broad temperature tolerance makes it suitable for applications in various climates and industries.
Our product comes with comprehensive documentation and technical support to facilitate easy installation and maintenance. It is part of our commitment to providing industry-leading solutions that enhance productivity and reduce downtime in manufacturing processes.
