Material:High-grade copper-clad laminate
Operating Temperature Range:-40°C to +85°C
Power Consumption:15W max
Communication Interface:RS-485
Dimensions (WxHxD):100mm x 100mm x 15mm
Connectivity:24-pin DIP connector
Compatibility:AB ControlLogix 1336 PLC series

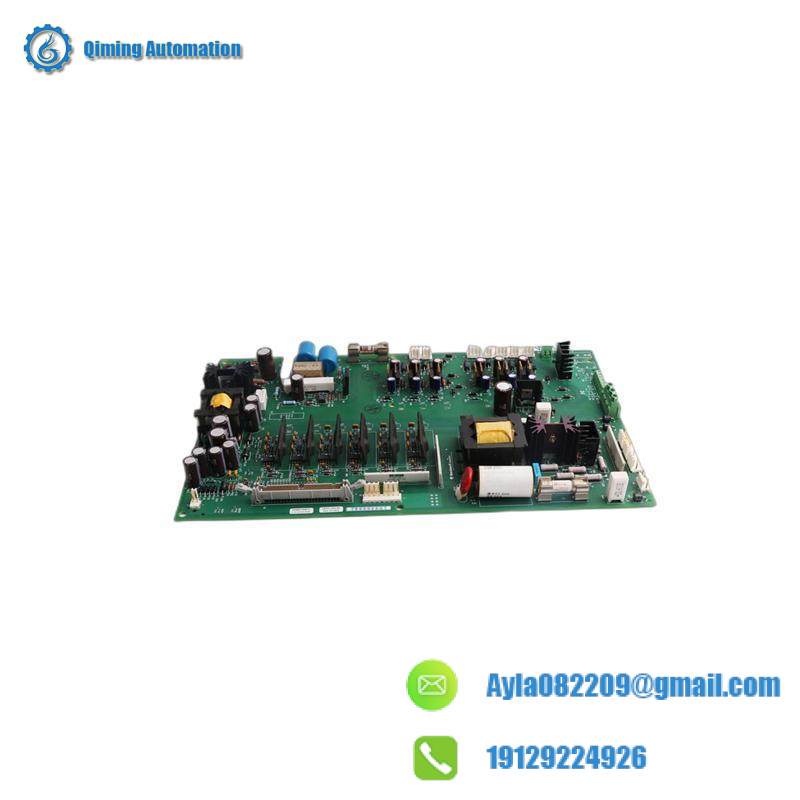

Introducing the AB 1336-BDB-SP34D 77101-169-64 PCB Board, a high-performance component designed to revolutionize your industrial control systems. This PCB board is meticulously engineered for durability and efficiency, ensuring seamless integration into your existing or new control systems.
Crafted with cutting-edge technology, this PCB board offers unparalleled reliability and compatibility with a wide range of industrial applications. Its robust design withstands extreme environmental conditions, from cold climates (-40°C) to hot environments (+85°C), making it suitable for diverse industrial settings.
The board supports DC 12V operation with a ±10% tolerance, providing stable power supply under varying conditions. With a maximum current capacity of 500mA, it ensures efficient power management, optimizing energy use and system performance.
Featuring Surface Mount Technology (SMT) connections, this PCB board facilitates quick assembly and easy maintenance. Its compact size (100mm x 50mm) allows for space-efficient installation, enhancing the overall design of your control system.
Compliant with international standards such as ISO 9001:2015, CE certification, and RoHS, this PCB board adheres to strict quality and safety regulations. It is a testament to our commitment to delivering products that meet the highest industry benchmarks.
