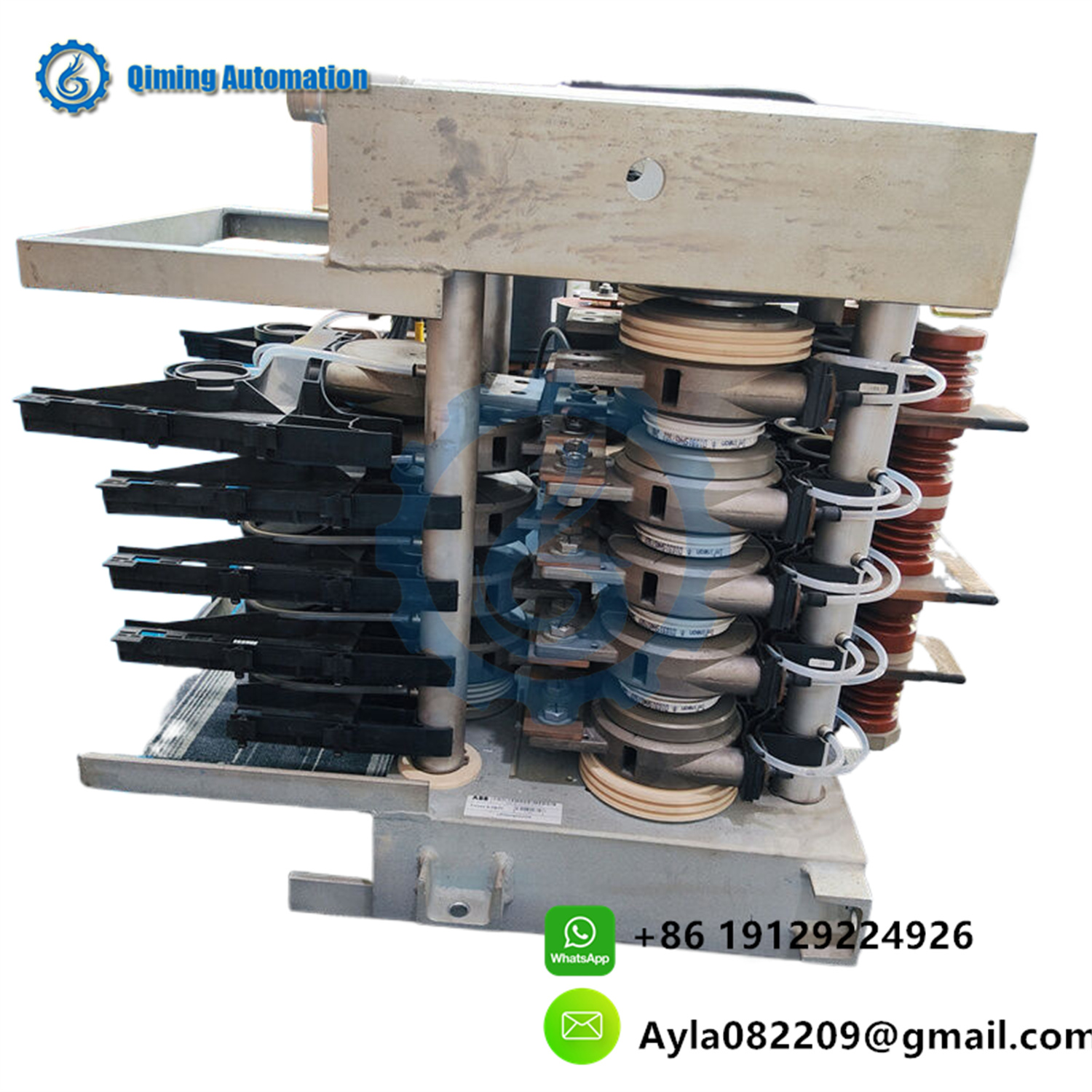

ABB S-093S 3BHB030475R0009 Product Introduction
1. Product Description
The ABB S – 093S 3BHB030475R0009 is a high – performance phase module. It serves as a crucial component in electrical systems, mainly responsible for detecting, processing, and controlling phase – related information. Phase, an important parameter in alternating current systems, describes the changes in the alternating current waveform. Precise phase control is essential for ensuring the stable operation of electrical equipment and systems, and this module plays a vital role in achieving such precision.
2. Technical Parameters
- Product Structure: It supports multiple installation forms, including rail – type, desktop, and embedded, providing flexibility for different application scenarios.
- Communication Interface: Equipped with a 3 – way RS232 or 485 serial port, which enables seamless communication with other devices in the system.
- Serial Port Rate: The serial port rate can be adjusted in the range of 300 ～ 9600 bps, allowing users to adapt to different communication speed requirements.
- Communication Error Code: The communication error code is ≤ 10⁻⁴, ensuring highly reliable data transmission.
- Operating Environment:
-
- Temperature: It can operate stably in the temperature range of – 20 ~ 70 ℃, making it suitable for various indoor and outdoor environments.
-
- Humidity: It can work properly under the condition of humidity ≤ 95% non – condensing.
-
- Atmosphere: It is designed to be used in non – corrosive and non – explosive environments.
- Power Supply: It requires a power supply of 10 – 30 V dc.
- Module Power Consumption:
-
- Standby Power Consumption: Only 1 W, which helps to save energy during standby.
-
- Transmit Power Consumption: 2 W when in active transmission.
3. Usage Method
- Installation:
-
- For rail – type installation, carefully slide the module onto the standard DIN rail until it clicks into place, ensuring a secure connection.
-
- In the case of desktop installation, place the module on a stable and flat surface.
-
- For embedded installation, follow the specific installation instructions provided in the relevant system’s manual to integrate the module into the designated location.
- Connection:
-
- Connect the communication cables to the appropriate RS232 or 485 serial ports according to the communication protocol requirements of the overall system. Make sure the connection is correct to avoid communication failures.
-
- Connect the power supply cables to the power input terminals of the module, ensuring that the power supply voltage meets the specified 10 – 30 V dc range.
- Configuration:
-
- Use the corresponding software or control interface to configure the module’s parameters, such as setting the serial port rate, communication protocol, and other relevant parameters according to the system requirements.
4. System Introduction
In power systems, the S – 093S module can be integrated into various control systems. For example, in an industrial power distribution system, it can be used to monitor and balance the three – phase power load. By accurately measuring the phase angles of each phase, it can detect any imbalances and take corrective actions to ensure that the power load is evenly distributed among the three phases. This helps to improve the efficiency and stability of the power distribution system, reducing the risk of equipment damage due to uneven loading.
In motor control systems, the module can be used to control the starting, running, and stopping of motors. By precisely controlling the phase of the power supply to the motor, it can ensure smooth motor operation, reduce vibration and noise, and extend the service life of the motor.
In communication systems, phase modules like the S – 093S can be used in signal modulation and demodulation processes. For example, in phase – modulation – based communication technologies (such as PM or PSK), the module can control the phase of the signal to transmit and encode information.
