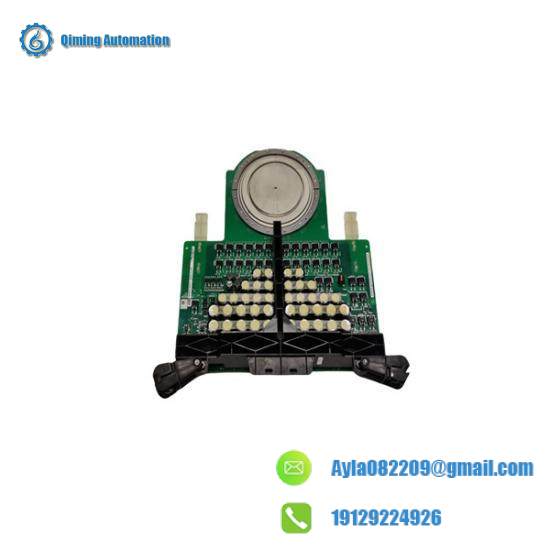

ABB 3BHB003154R0101, 5SXE030141, 5SGX2645L0004, 3BHL000390P010 – High-Power IGCT Module

Product Type:IGCT Module

Module Class:High-Power

Manufacturer Part Number:3BHB003154R0101, 5SXE030141, 5SGX2645L0004, 3BHL000390P010

Maximum Power Handling:Up to 10 MW

Operating Voltage:15 kV

Operating Current:10 kA

Switching Frequency:Up to 1 kHz

Cooling Method:Water-cooled

Dimensions (WxHxD):200 x 500 x 500 mm

Weight:150 kg

Environmental Conditions:Operable from -40°C to +60°C

Certifications:CE, UL, IEC, ISO 9001

    The ABB IGCT module is engineered with cutting-edge technology, ensuring unparalleled performance in high-power industrial systems.

    Featuring an insulation class of F, this module offers exceptional thermal stability, enabling it to withstand demanding operating conditions.

    With a high switching frequency of up to 20kHz, the module ensures fast response times and improved system efficiency.

    The air-cooled design allows for efficient heat dissipation, maximizing the module’s lifespan and reliability in continuous operation environments.

    Designed for compatibility with a wide range of industrial control systems, this module simplifies integration and streamlines system management.

    Manufactured using premium materials, the ABB IGCT module guarantees durability and robustness, ensuring minimal downtime and maintenance needs.
