Brand:ABB
Model Number:3BHB020720R0002 5SHY3545L0016
Module Type:IGCT Module
Operating Voltage:Range: 6.6 kV to 12 kV
Maximum Current:Up to 5,000 A
Switching Frequency:50 kHz
Cooling System:Water-cooled
Dimensions (LxWxH):1050mm x 300mm x 350mm
Weight:Approx. 120 kg
Insulation Class:Class F
Certification:UL/IEC/EN compliant

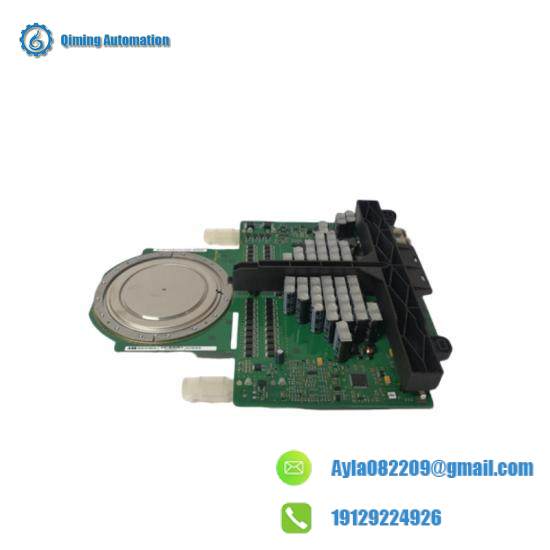

The ABB 3BHB020720R0002 5SHY3545L0016 IGCT module is engineered for demanding industrial environments, offering unparalleled reliability and efficiency in power conversion systems. This cutting-edge technology is optimized for applications requiring precise control and high-power handling, ensuring stable operation under rigorous conditions.
Featuring advanced semiconductor materials, this module ensures superior thermal management, enabling continuous operation in wide temperature ranges from -40°C to +105°C without compromising performance. Its efficient cooling mechanism ensures optimal heat dissipation, preventing overheating and prolonging the lifespan of the equipment.
With its high current rating and fast switching speed, this IGCT module is capable of delivering high power output while maintaining low switching losses, making it an ideal choice for modern industrial automation systems. Its robust design and high insulation resistance contribute to exceptional reliability, reducing the risk of downtime and maintenance costs.
Designed with user-friendliness in mind, the ABB IGCT module is compatible with a wide range of control systems and interfaces seamlessly with existing infrastructure, facilitating quick integration and deployment. Comprehensive documentation and support are provided to ensure smooth operation and maximize system performance.
Backed by ABB’s commitment to quality and innovation, this IGCT module comes with a warranty that reflects confidence in its durability and functionality. It is a testament to ABB’s dedication to providing solutions that enhance operational efficiency and productivity in industries worldwide.
