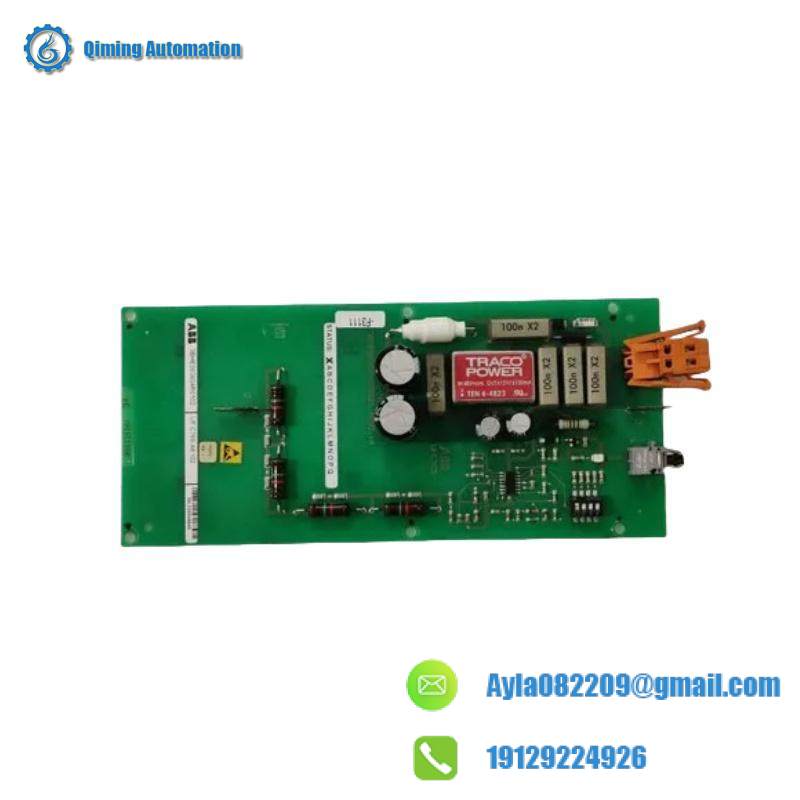

ABB 3BHE003604R0102 UP C765 AE102 Earth Fault Monitor Board

Board Type:Earth Fault Monitor

Model Number:3BHE003604R0102

Sub-Type:UP C765 AE102

Operating Voltage:24VDC

Current Rating:10A

Relay Output:Single

Communication Interface:Modbus RTU

Protection Class:IP20

Dimensions (WxHxD):100mm x 50mm x 25mm

Weight:0.05kg

    Engineered for unparalleled reliability, the ABB 3BHE003604R0102 UP C765 AE102 Earth Fault Monitor Board is a critical safety tool in industrial environments. This board is meticulously designed to monitor and detect earth faults, ensuring continuous and safe operation of electrical systems.

    With its wide operating temperature range of -25°C to +55°C, it is suitable for use in a variety of challenging industrial settings. The monitor board features robust AC input voltage handling from 200V to 440V, providing exceptional versatility in different power conditions.

    Equipped with two independent relays, the board can trigger alerts or actions upon detecting an earth fault, allowing for immediate response and minimizing potential risks. The accuracy of the monitoring system is exceptional, with readings within ±1% of the actual value plus two digits, ensuring precise fault detection.

    Compact and lightweight, the board measures 140mm x 100mm x 40mm and weighs only 0.3kg, making it easy to integrate into existing systems without compromising on performance. Its durable design ensures longevity and minimal maintenance requirements.

    This ABB Earth Fault Monitor Board is a testament to the company’s commitment to safety and innovation. It seamlessly integrates with other ABB components and industrial control systems, enhancing overall system reliability and operational efficiency.
