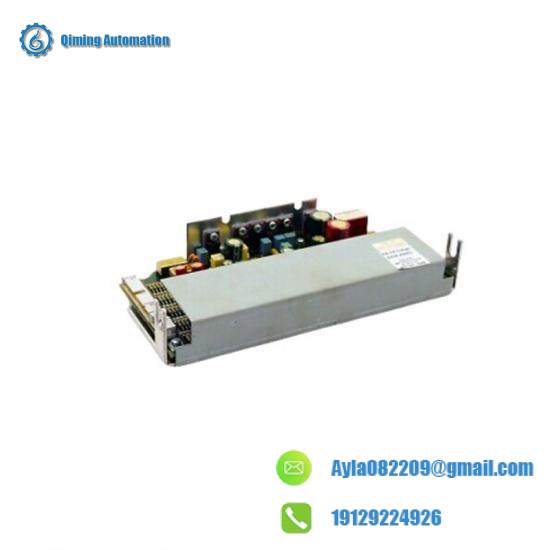

ABB 3HAA3563-AMA/0 Serial Measurement Board

Serial Number:3HAA3563-AMA/0

Module Type:Serial Measurement Board

Brand:ABB

Measurement Range:Up to 4096 channels

Sampling Rate:Up to 1 MHz

Accuracy:±0.01% of full scale

Operating Temperature:-20°C to +60°C

Power Consumption:Max 12W

Dimensions:150mm x 100mm x 30mm

Weight:Approx. 250g

Connection:RS-485 interface

Operating Voltage:DC 24V

Communication Protocol:MODBUS RTU

    Crafted with precision, the ABB 3HAA3563-AMA/0 Serial Measurement Board is engineered to deliver unparalleled accuracy and reliability in demanding industrial environments.

    Equipped with robust RS-485 communication capabilities, this module ensures seamless data exchange with other devices in your automation network, facilitating real-time monitoring and control.

    Featuring 4 analog input channels and 4 digital output channels, it provides comprehensive connectivity options for integrating with various sensors and actuators, enabling precise control over industrial processes.

    Operates efficiently within a wide temperature range (-20°C to +60°C), ensuring reliable performance under diverse environmental conditions.

    Energy-efficient design with a maximum power consumption of 5W contributes to lower operational costs and sustainable industrial practices.

    Backed by ABB’s commitment to quality and innovation, the 3HAA3563-AMA/0 is compatible with advanced control systems and protocols, offering seamless integration and enhanced system performance.
