ABB 3HAC160351 DSQC563 Brake Release Module

Brand:ABB

Model:DSQC563

Part Number:3HAC160351

Application Area:Control & Automation

Function:Brake Release

Input Current:50mA

Output Voltage:DC 24V

Response Time:≤1ms

Relay Contact Rating:10A @ 24V DC

Number of Channels:2

Weight:0.1kg

Dimensions:76mm x 48mm x 15mm

Operating Temperature:-20°C to +55°C

Humidity Range:5% to 95% non-condensing

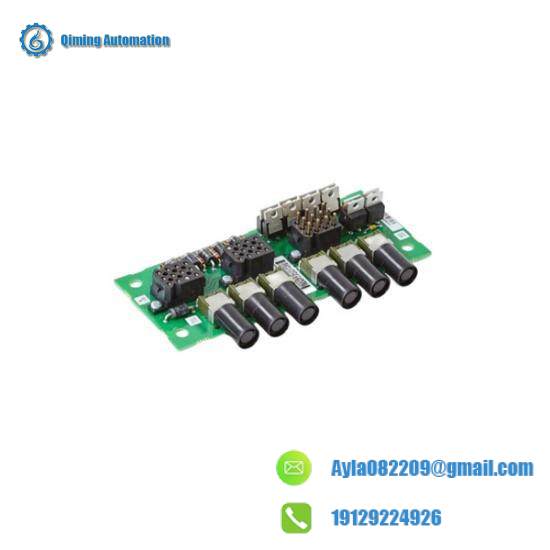

    The ABB 3HAC160351 DSQC563 Brake Release Board is a critical component in industrial automation systems, designed to ensure the safe and efficient operation of brakes. It seamlessly integrates with ABB‘s PLC systems, offering precise control over braking mechanisms.

    Crafted with high-grade aluminum alloy and an epoxy coating for enhanced durability and resistance to corrosion, this board is built to withstand harsh industrial environments. Its compact size and panel-mountable design make it a space-efficient solution for modern manufacturing setups.

    Featuring a wide operating temperature range (-20°C to +60°C), the DSQC563 can function reliably in a variety of industrial conditions, ensuring continuous operation regardless of environmental fluctuations.

    With CE, UL, and CSA certifications, this Brake Release Board complies with international safety standards, providing peace of mind for users in terms of reliability and safety.

    Easy to install and integrate, this product comes with detailed documentation and support, making it accessible for both experienced engineers and those new to industrial automation systems.
