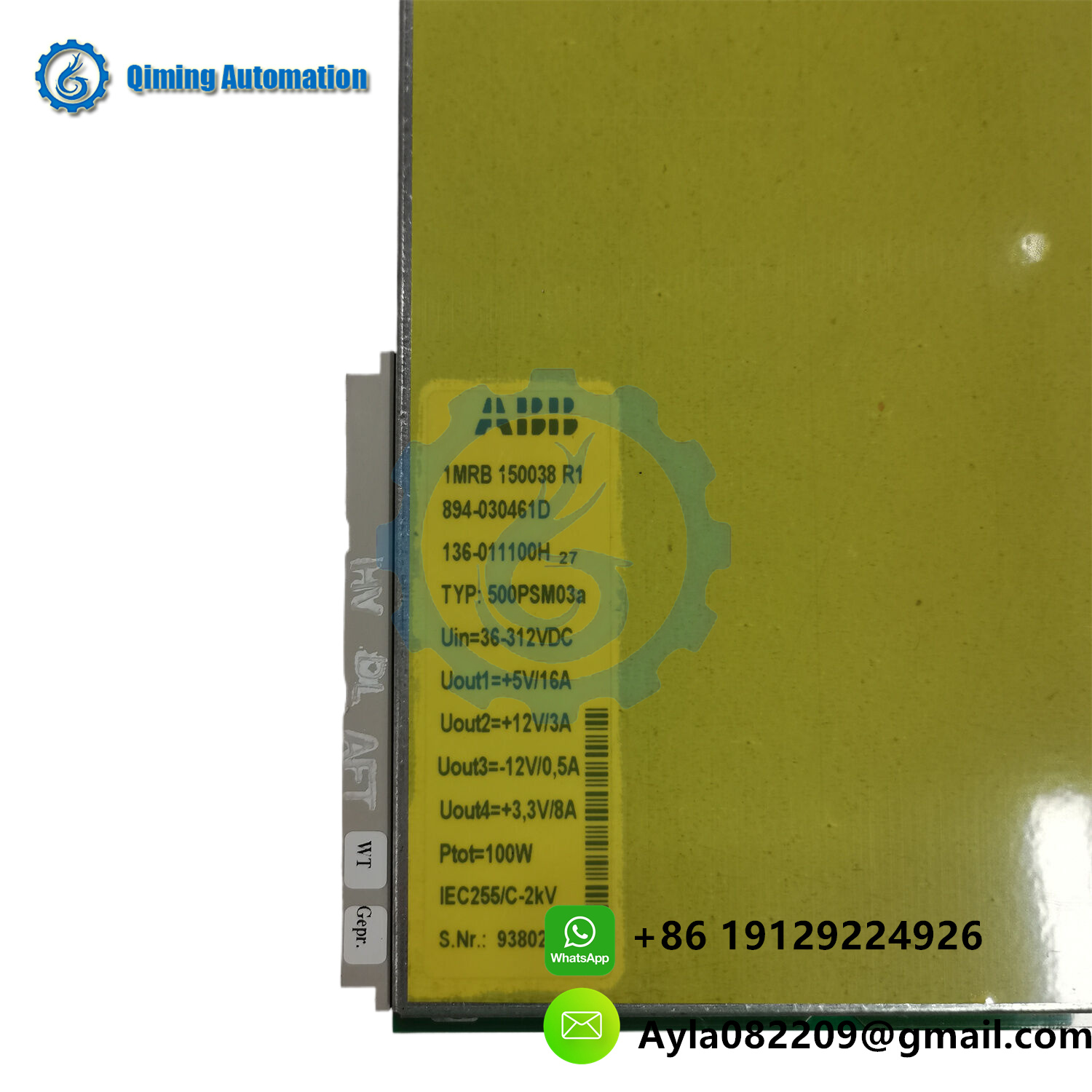

ABB 500PSM03 Product Introduction
1. Product Description
The ABB 500PSM03 is a 100W power supply module engineered for industrial automation systems. It is a reliable and efficient component, designed to provide stable power for various applications. This module is known for its high – performance capabilities, ensuring seamless operation in different industrial setups.
2. Technical Parameters
- Input Voltage: It can accept input voltages ranging from 85 Vac to 264 Vac. This wide input voltage range offers flexibility, allowing it to be used with different power sources in various regions or applications where power supply voltage may vary.
- Input Current: The maximum input current is 2.7 A. This value is crucial for sizing the upstream electrical components such as fuses and circuit breakers to ensure safe and proper operation.
- Output Voltage: The output voltage is set at 24 Vdc. This stable output voltage is suitable for powering a wide range of industrial devices that require a 24 – volt DC power supply.
- Output Current: The maximum output current is 4.2 A. This rating determines the amount of electrical load the module can drive, enabling it to power multiple components within the industrial automation system.
- Efficiency: It achieves an efficiency of up to 90%. High efficiency means less power is wasted as heat, resulting in lower energy consumption and reduced cooling requirements for the overall system.
- Operating Temperature Range: It can operate in temperatures ranging from – 20 °C to + 60 °C. This wide temperature range makes it suitable for use in diverse environments, whether it’s a cold storage facility or a hot industrial plant.
- Weight: The module weighs approximately 1000 g (1 kg), which is relatively compact and lightweight considering its power – handling capabilities, facilitating easy installation and integration into different systems.
- Dimensions: With dimensions of 100 mm x 50 mm x 30 mm, it has a small footprint, allowing for easy integration into various system configurations, especially those with space – constraints.
3. Usage Method
- Installation:
-
- Mount the 500PSM03 power supply module in a suitable location within the industrial control panel. Ensure that the mounting surface is flat and stable to prevent vibrations that could affect the module’s performance.
-
- If using a DIN – rail for installation, slide the module onto the standard DIN – rail until it clicks securely into place. For other mounting methods, follow the provided installation guidelines to fix the module firmly.
- Connection:
-
- Connect the input power cables to the designated input terminals of the module. Make sure to match the correct wires to the appropriate terminals for the input voltage source (either 85 – 264 Vac). Use appropriate wire gauges based on the expected input current to ensure safe and efficient power transfer.
-
- Connect the output cables to the devices that require power. Connect the positive (+) and negative (-) output wires to the corresponding power – input terminals of the load devices. Ensure that the total load connected to the module does not exceed the maximum output current rating of 4.2 A.
- Configuration (if applicable):
-
- Some versions of the 500PSM03 may require basic configuration. Check the user manual for any specific settings that need to be adjusted, such as output voltage calibration (if there is a limited adjustment range) or any power – saving modes. In most cases, however, the module is designed to be “plug – and – play” with the standard 24 Vdc output.
4. System Introduction
In industrial automation systems, the ABB 500PSM03 power supply module plays a vital role. It serves as the power source for a variety of components within the system. For example, in a Programmable Logic Controller (PLC) – based automation system, the 500PSM03 can power the PLC itself, as well as any associated input/output (I/O) modules. These I/O modules are used to interface with sensors and actuators in the industrial process. The stable 24 Vdc power from the 500PSM03 ensures accurate signal processing and reliable operation of the sensors and actuators, which in turn control the industrial process.
In a robotic assembly line, the power supply module can provide power to the robotic control units and the motors that drive the robotic arms. The high – efficiency and stable output of the 500PSM03 are essential for the smooth and precise movement of the robotic arms, ensuring accurate assembly operations. Additionally, in a factory’s lighting control system that is part of the overall automation setup, the 500PSM03 can power the control devices that regulate the lighting levels based on factors like ambient light and occupancy, contributing to energy – efficient lighting management.
