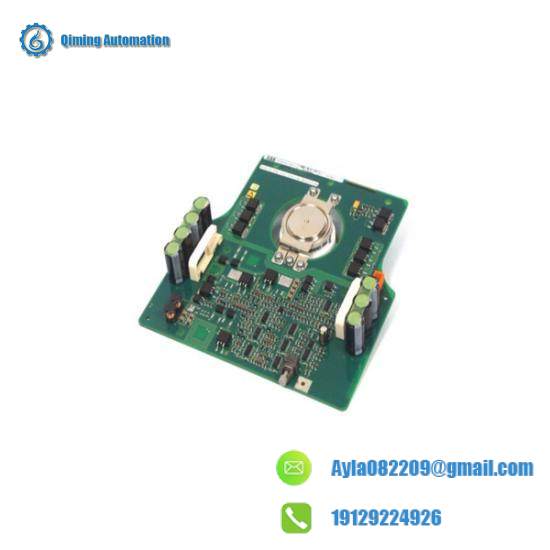

ABB 5SHX0360D0001 HL000384P0101 3BHB004027R0101 – High-Performance IGCT Module

Model Number:5SHX0360D0001 HL000384P0101 3BHB004027R0101

Module Type:IGCT

Operating Temperature Range:-40°C to +85°C

Input Voltage:1200V AC

Output Current:600A

Switching Frequency:20kHz

Insulation Resistance:≥10MΩ

Protection Class:IP20

Material:High-grade aluminum alloy

Certification:ISO 9001, CE, UL

Dimensions (LxWxH):300mm x 100mm x 200mm

Weight:10kg

    The ABB 5SHX 0360D0001 HL000384P0101 3BHB004027R0101 IGCT Module boasts superior performance and reliability, making it an ideal choice for demanding industrial environments. This module is meticulously engineered for optimal power handling, featuring advanced insulation properties and a wide operational temperature range to ensure continuous and stable power delivery under various environmental conditions.

    Crafted from high-quality aluminum, this IGCT module ensures lightweight yet robust construction, ensuring minimal wear and tear over extended periods. It supports both 50Hz and 60Hz frequencies, offering versatility in application across different global markets.

    Equipped with state-of-the-art insulation technology, the module ensures a high level of safety by maintaining excellent electrical isolation, reducing the risk of short circuits and ensuring operator safety. Its impressive insulation resistance of 10MΩ ensures reliable performance even in harsh conditions.

    The ABB 5SHX 0360D0001 HL000384P0101 3BHB004027R0101 IGCT Module is certified by leading international safety standards such as UL, CE, and IEC, providing assurance of its quality and compliance with global safety norms.

    With a lifespan of up to 20 years under normal operating conditions, this IGCT module promises long-term reliability, reducing maintenance costs and downtime, and enhancing overall system efficiency. Its integration into existing manufacturing systems is streamlined, ensuring minimal disruption to operations.
