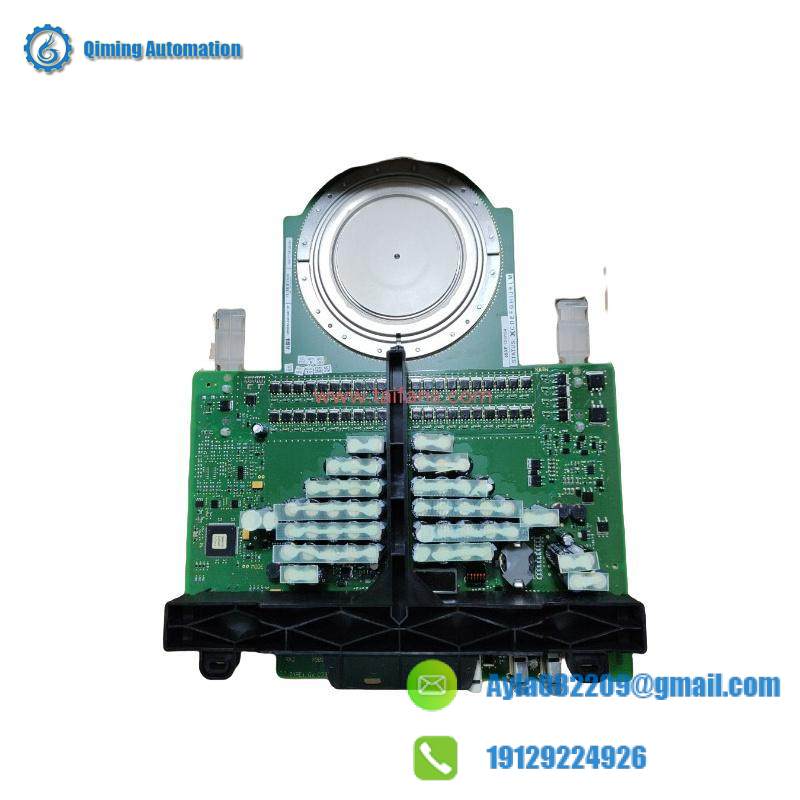

ABB 5SHY3545L0014 3BHB013085R0001 Product Introduction
Product Description
The ABB 5SHY3545L0014 3BHB013085R0001 is a high-performance thyristor module, specifically designed for power control and conversion in industrial applications. It efficiently regulates the flow of alternating current (AC) by controlling the firing angle of thyristors, making it suitable for use in rectifiers, soft starters, and power regulators. This module is built to handle high current and voltage levels, ensuring stable operation in demanding environments such as steel mills, chemical plants, and power distribution systems. Its robust construction and excellent thermal management capabilities contribute to reliable performance, minimizing downtime and enhancing the efficiency of power systems.
Technical Parameters
- Rated Current (IT(RMS)): 350 A, enabling it to manage substantial electrical loads.
- Repetitive Peak Off-State Voltage (VDRM/VRRM): 4500 V, providing high voltage withstand capacity.
- Turn-On Time: ≤ 2.0 μs, ensuring quick response during operation.
- Turn-Off Time: ≤ 60 μs, facilitating efficient switching between on and off states.
- Forward Voltage Drop (VT): Typ 1.9 V at 350 A, reducing power loss during conduction.
- Operating Junction Temperature (TJ): -40 ~ 125 °C, adapting to a wide range of thermal conditions.
- Storage Temperature Range: -40 ~ 125 °C, maintaining integrity when not in use.
- Isolation Voltage (Viso): 4200 V RMS, ensuring safe electrical isolation between components.
- Mounting Torque: 20 Nm, ensuring secure installation for stable operation.
- Weight: Approximately 1.0 kg, offering a sturdy build while remaining manageable.
- Dimensions (L × W × H): 130 mm × 90 mm × 45 mm, compact for easy integration into various systems.
- Terminal Type: Screw terminals, providing secure and reliable electrical connections.
The ABB 5SHY3545L0014 3BHB013085R0001 is available for sale globally, covering all major industrial markets. Orders are processed promptly, with delivery guaranteed within 3 days, ensuring quick integration into your power control systems with minimal delay.
