Operating Temperature Range:-40°C to +175°C
Current Rating:6500A
Peak Reverse Voltage:2600V
Thermal Resistance:1.5°C/W
Package Type:TO-220
Number of Elements:Single
Cooling Method:Air-Cooled
Maximum Gate Current:100mA
Gate Trigger Voltage:≤20V DC
Operating Voltage:AC 400V to 1500V
Frequency Range:50Hz to 60Hz
Insulation Resistance:≥50MΩ @ 500V DC

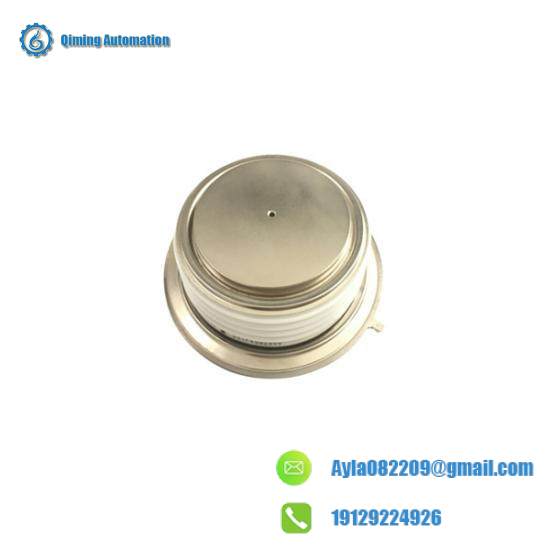

Introducing the ABB 5STP-26N6500 Phase Control Thyristor, engineered for exceptional performance in industrial power control applications. This module ensures smooth and accurate phase angle control, enabling optimal energy efficiency across various industrial processes. With a power rating of 6500 VA and compatibility with heat sink installations, it is designed for demanding environments.
Operating within a wide temperature range from -40°C to +85°C, this thyristor is built to withstand harsh industrial conditions, ensuring reliable operation throughout its lifespan. It supports AC 3-phase input voltage from 400 V to 690 V, providing versatility in different electrical systems.
Featuring a control range of 0° to 180°, the ABB 5STP-26N6500 offers precise control over power flow, making it suitable for applications that require fine-tuning of phase angles for improved system performance. Its current capacity can reach up to 1600 A, catering to heavy-duty industrial needs.
Safety is paramount with this thyristor, which includes robust protection features such as overcurrent and overvoltage protection, safeguarding against potential hazards and prolonging equipment life. It operates at a standard frequency of 50 Hz / 60 Hz, seamlessly integrating into most industrial settings.
Crafted with precision and reliability, the ABB 5STP-26N6500 Phase Control Thyristor is an indispensable component for enhancing efficiency and productivity in industrial automation systems. Trust in ABB‘s expertise to deliver superior quality and performance, ensuring your operations run smoothly and efficiently.
