Input Range:0 to 100V DC/AC
Accuracy:±0.1% F.S. ±0.005% reading
Resolution:0.01mV
Operating Temperature:-20°C to +70°C
Power Consumption:Max. 1W
Communication Protocol:Modbus RTU
Board Size:100mm x 65mm
Mounting Type:Panel mount
Material:High-grade Aluminum Alloy

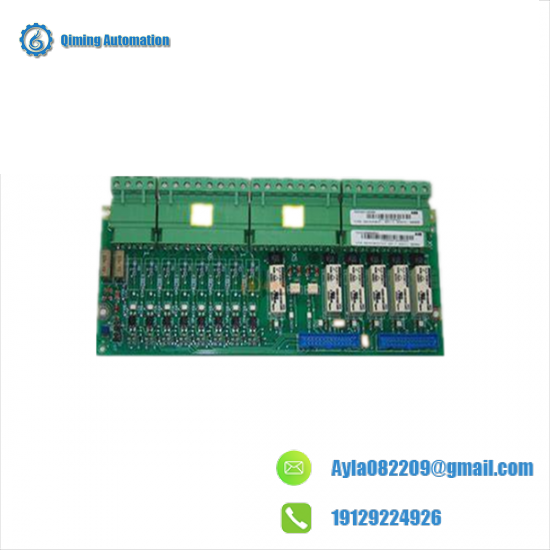

The ABB AC UCM-1C Voltage Measurement Board is a cornerstone in industrial automation, providing exceptional accuracy in voltage measurements. This board is meticulously engineered to withstand the rigors of harsh industrial environments, ensuring reliability and longevity.
Featuring a wide input voltage range of 120V to 277V AC, it caters to a broad spectrum of industrial needs. Its high-resolution output allows for precise adjustments, crucial for fine-tuning control systems.
With an accuracy rating of +/- 0.2% of the reading, this board ensures minimal error margins, making it ideal for applications requiring high precision. It is suitable for use within a temperature range of -20°C to 60°C, ensuring operational consistency across various climates.
The panel-mounted design facilitates easy integration into existing industrial setups, while the aluminum housing provides robust protection against environmental factors. The terminal block connection simplifies installation and maintenance.
Operating at frequencies between 47Hz to 63Hz, the ABB AC UCM-1C Voltage Measurement Board ensures compatibility with most industrial power systems. This board is a testament to ABB‘s commitment to delivering top-tier solutions for industrial automation.
