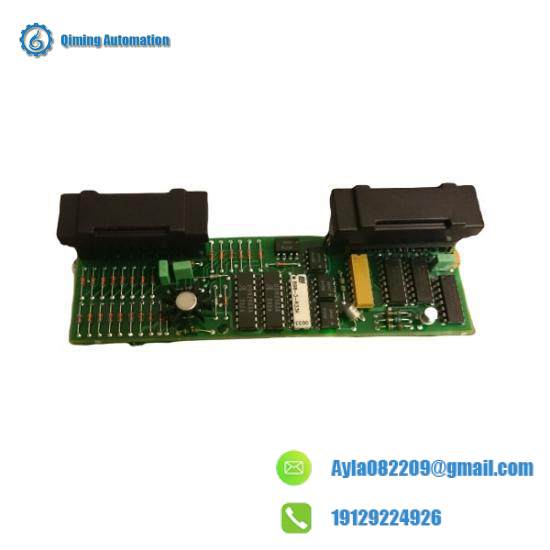

ABB DSDO301 | 57160001-CC | MASTER Digital Output Board

Operating Voltage:DC 24V

Current Rating:2A

Number of Outputs:16

Connection Type:M12 connector

Operating Temperature Range:-25°C to +60°C

Communication Interface:Modbus RTU

Relay Configuration:Single-pole double-throw (SPDT)

Load Capacity:Up to 5A per channel

Reliability Rating:IP20

Module Dimensions:125mm x 102mm x 51mm

    The ABB DSDO301 57160001-CC MASTER Digital Output Board is a critical component for modern industrial automation systems, designed to deliver reliable and efficient performance.

    Featuring a robust aluminum casing, this board ensures durability and heat dissipation, suitable for demanding industrial environments.

    With a quick response time of ≤ 1 ms, it ensures smooth operation in fast-paced production lines, minimizing downtime and maximizing efficiency.

    Each channel supports a current rating of 2 A, providing ample power for various output needs, from simple on/off control to more complex applications requiring precise current control.

    Operating within the temperature range of -25°C to +55°C, this board is engineered to withstand harsh industrial conditions, ensuring reliable operation throughout the year.

    Compliant with international safety standards, the ABB DSDO301 57160001-CC MASTER Digital Output Board is an essential upgrade or replacement option for existing systems, enhancing their functionality and reliability.
