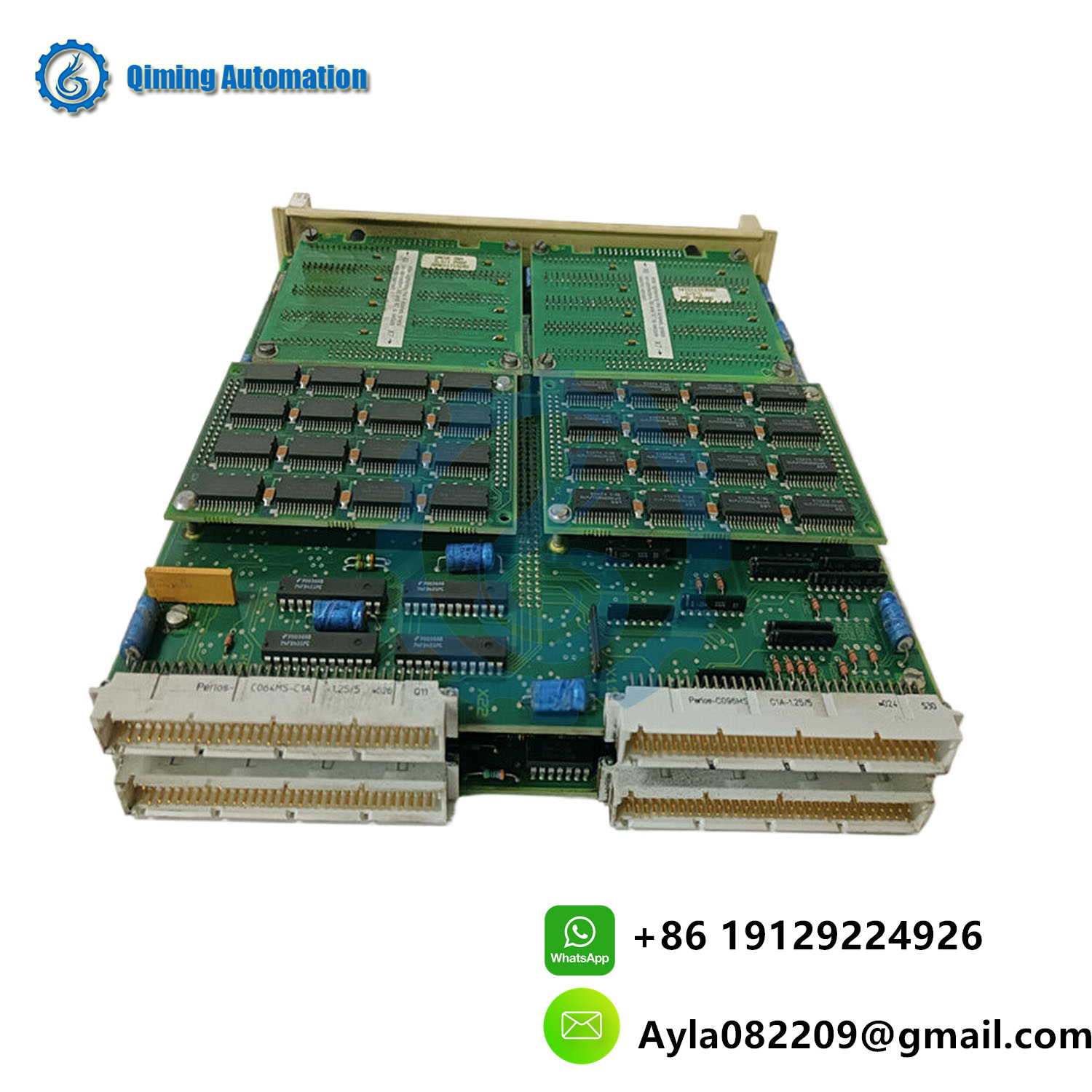

ABB DSPC174 3BSE005461R1 Product Introduction
Product Description
The ABB DSPC174 3BSE005461R1 is an advanced digital signal processing module, tailored for high-precision data processing in industrial automation systems. It functions as a key component in analyzing and interpreting complex signals from sensors, transmitters, and other field devices, converting raw data into meaningful insights for central control units. This module is extensively used in industries such as petrochemicals, power generation, and manufacturing, where accurate real-time signal processing is vital for optimizing production processes, ensuring equipment safety, and maintaining operational stability. With its powerful processing capabilities and built-in noise reduction features, it delivers reliable performance even in electrically noisy industrial environments, enabling seamless integration into diverse automation setups.
Technical Parameters
- Processor: 32-bit digital signal processor (DSP) with a clock speed of 400 MHz, ensuring fast and accurate signal analysis.
- Memory: 128 MB RAM and 512 MB flash memory, providing ample space for program storage and data buffering.
- Operating Voltage: 24 V DC ± 10%, compatible with standard industrial power supply systems.
- Power Consumption: Typical 15 W, ensuring energy-efficient operation.
- Analog Inputs: 8 channels with 16-bit resolution, supporting a sampling rate of 8 kHz per channel for precise signal capture.
- Digital Inputs/Outputs: 12 digital inputs and 12 digital outputs, facilitating connection with various digital field devices.
- Operating Temperature Range: -10 ~ 60 °C, suitable for harsh industrial working conditions.
- Storage Temperature Range: -40 ~ 85 °C, maintaining integrity during storage and transportation.
- Relative Humidity: 5% ~ 95% (non-condensing), resistant to moisture-related issues.
- Communication Interfaces: 1 x Ethernet port (10/100 Mbps) and 2 x RS485 ports, supporting protocols like Modbus TCP/IP and Profibus.
- Signal Processing: Built-in filters for noise reduction, ensuring accurate data interpretation.
- Dimensions (L × W × H): 140 mm × 90 mm × 45 mm, compact for easy installation in control cabinets.
- Weight: Approximately 250 g, lightweight for convenient handling and mounting.
- Mounting Type: DIN rail mounting, compatible with standard industrial mounting systems.
- Certifications: CE, UL, meeting international safety and quality standards.
The ABB DSPC174 3BSE005461R1 is available for global sale, covering all major industrial regions. Orders are processed efficiently, with delivery guaranteed within 3 days, ensuring quick integration into your automation systems to minimize operational delays.
