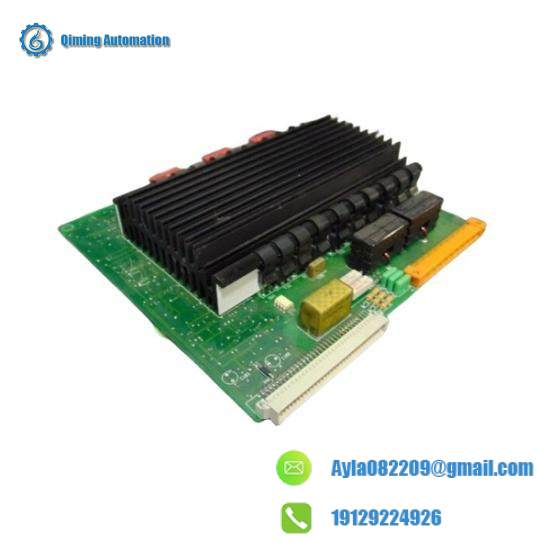

ABB DSQC236U 3HAA3563ANA Servo Drive Unit: Precision Control, Industrial Automation Excellence

Operating Voltage:24 V DC

Output Power:Up to 500 W

Control Interface:RS-232 / RS-485

Communication Protocol:EtherCAT, DeviceNet

Input Signals:10 digital inputs, 2 analog inputs

Output Signals:10 digital outputs, 1 analog output

Protection Class:IP20

Dimensions (WxDxH):144 mm x 144 mm x 71.5 mm

Weight:0.7 kg

    The ABB DSQC236U 3HAA3563ANA Industrial Servo Drive Unit stands out for its compact design and high performance capabilities, making it an ideal choice for space-constrained industrial settings where precision and reliability are paramount.

    Equipped with advanced EtherCAT communication technology, this drive unit ensures seamless integration with ABB‘s comprehensive suite of motion control solutions, enhancing productivity and reducing system complexity.

    Capable of handling a wide range of encoder types, from single-turn to multi-turn configurations, the DSQC236U offers unparalleled flexibility, allowing for customized setup to meet diverse application requirements.

    Featuring an impressive power consumption figure, the drive unit optimizes energy usage without compromising on performance, contributing to a more sustainable manufacturing environment.

    Designed to withstand harsh industrial conditions, the DSQC236U operates reliably within an extended temperature range, from -20°C to +60°C, ensuring continuous performance in demanding environments.
