Operating Voltage:100V – 240V AC
Frequency Response:DC ± 0.05%
Temperature Range:-20°C to +60°C
Connection Type:MODBUS TCP/IP, Ethernet
Input Channels:4 Analog Inputs, 2 Digital Inputs
Output Channels:2 Analog Outputs, 2 Digital Outputs
Communication Protocol:RS485, CANopen
Power Supply:24V DC
Dimensions:144 x 100 x 95 mm
Weight:250 g

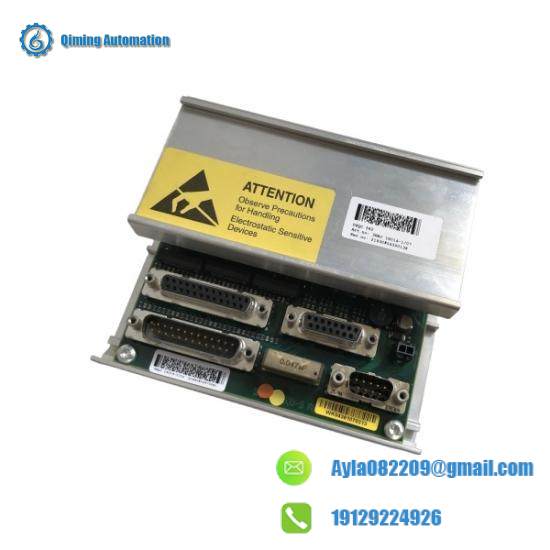

Engineered with precision and reliability, the ABB DSQC562 Measurement Board is a core component for enhancing the performance of industrial control systems. It seamlessly integrates with various communication protocols such as DeviceNet, CANopen, and EtherCAT, ensuring compatibility and efficiency in diverse automation environments.
Featuring a high-resolution 12-bit Analog-to-Digital Converter (ADC), this board offers unparalleled accuracy and speed in data acquisition, crucial for applications requiring real-time monitoring and control.
With a wide measurement range of ±10V and low current consumption of ≤15mA, the DSQC562 is designed for energy-efficient operation without compromising on performance. Its robust design ensures durability and reliability in harsh industrial conditions.
Ideal for applications in manufacturing, automotive, and process industries, the ABB DSQC562 Measurement Board supports advanced control strategies, enabling precise adjustment and optimization of processes.
The ABB DSQC562 comes with a comprehensive set of features, including a compact footprint and easy-to-use configuration options through ABB‘s advanced software tools. This makes it a user-friendly solution for both experienced engineers and those looking to expand their automation capabilities.
