Type:Digital Input / Analog Output
Connector Type:Profinet
Max Inputs:8 Digital
Max Outputs:4 Analog
Communication Protocol:Profinet
Operating Voltage:DC 24V
Dimensions (mm):88.5 x 51.8 x 25
Weight:0.14 kg

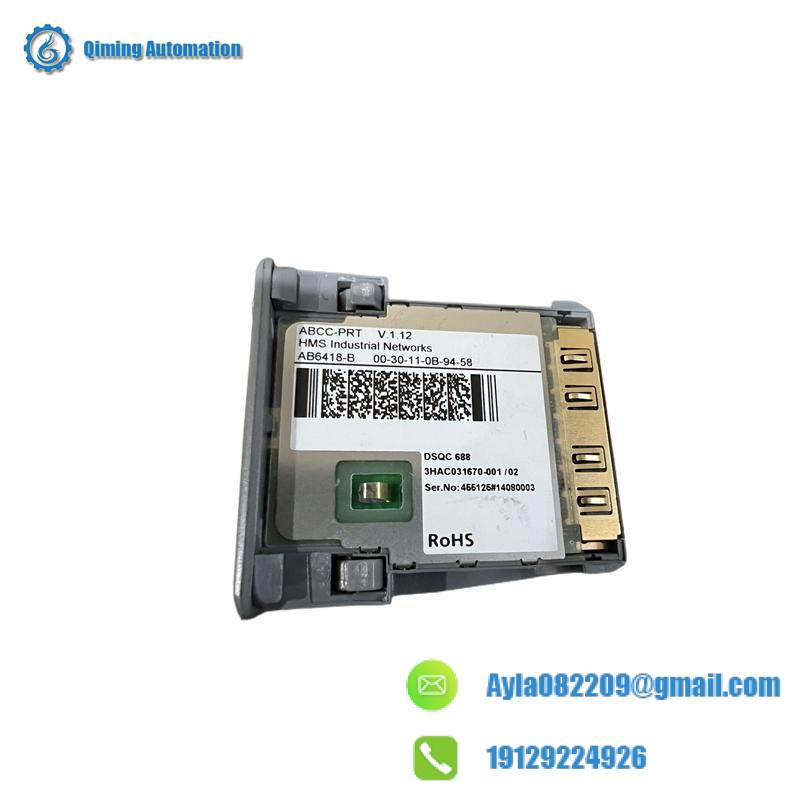

The ABB DSQC688 ProfiNet Board stands out as an indispensable component in any industrial control system due to its robust design and versatile functionality. This board supports Profibus DP and Profinet protocols, ensuring compatibility with a wide array of automation equipment. Its RJ45 Ethernet interface facilitates efficient data transmission over a network, making it suitable for both small and large-scale industrial environments.
Featuring an operating temperature range from -20°C to +70°C, this board is built to withstand harsh industrial conditions, ensuring reliable operation under various environmental challenges. With a maximum power consumption of 12W, it optimizes energy use without compromising performance.
Measuring 100mm x 64mm x 20mm, the compact size of the DSQC688 allows for easy integration into existing control panels or new installations. It comes equipped with 1 x 8-channel analog input for precise measurement and 1 x 8-channel digital input/output for control operations, providing a comprehensive solution for process monitoring and control applications.
Equipped with advanced safety features, this board ensures compliance with international standards, guaranteeing user safety and peace of mind. The ABB DSQC688 ProfiNet Board is designed to enhance efficiency, reduce downtime, and optimize operational costs in industrial settings.
With its intuitive setup and user-friendly interface, the ABB DSQC688 ProfiNet Board simplifies complex automation tasks, making it accessible to a broad range of users from experienced engineers to entry-level technicians. Its modular design allows for flexible configurations, accommodating diverse industrial requirements and future expansion.
