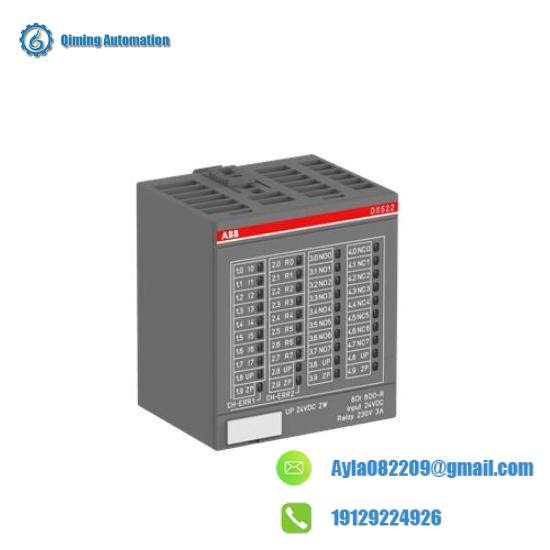

ABB DX522 – 1SAP245200R0001 – 8DO Relay Module

Operating Voltage:24 VDC

Current Rating per Channel:2 A @ 24 VDC

Contact Rating:300 mA @ 250 VAC / 1 A @ 24 VDC

Relay Type:SPST

Operating Temperature Range:-25°C to +60°C

Environmental Protection:IP20

Connection Type:Terminal Block

Bus Interface:Modbus RTU

Communication Protocol:Profibus DP

Dimensions (WxHxD):52 x 110 x 97 mm

Weight:100 g

    The ABB DX522 1SAP245200R0001 8DO Relay Module is engineered with advanced technology to provide reliable and efficient operation in industrial settings. Its compact design allows for easy integration into existing control systems without compromising on performance.

    Each relay is equipped with a long service life, ensuring minimal maintenance requirements and prolonged operational reliability. The module supports MODBUS RTU protocol, facilitating seamless communication with other industrial devices.

    Featuring a wide operating temperature range from -25°C to 70°C, this module is suitable for use in harsh industrial environments where temperature fluctuations are common. The terminal block connection type provides a robust interface for connecting external devices.

    With a relay rating of 10A at 250V AC (max.), the module is capable of handling high currents, making it ideal for applications that require significant power output. The low operating current ensures energy efficiency even under continuous use.

    The separate power supply requirement allows for flexible installation and configuration, ensuring compatibility with a variety of power sources. This feature enhances the adaptability of the module, making it a versatile choice for diverse industrial automation projects.
