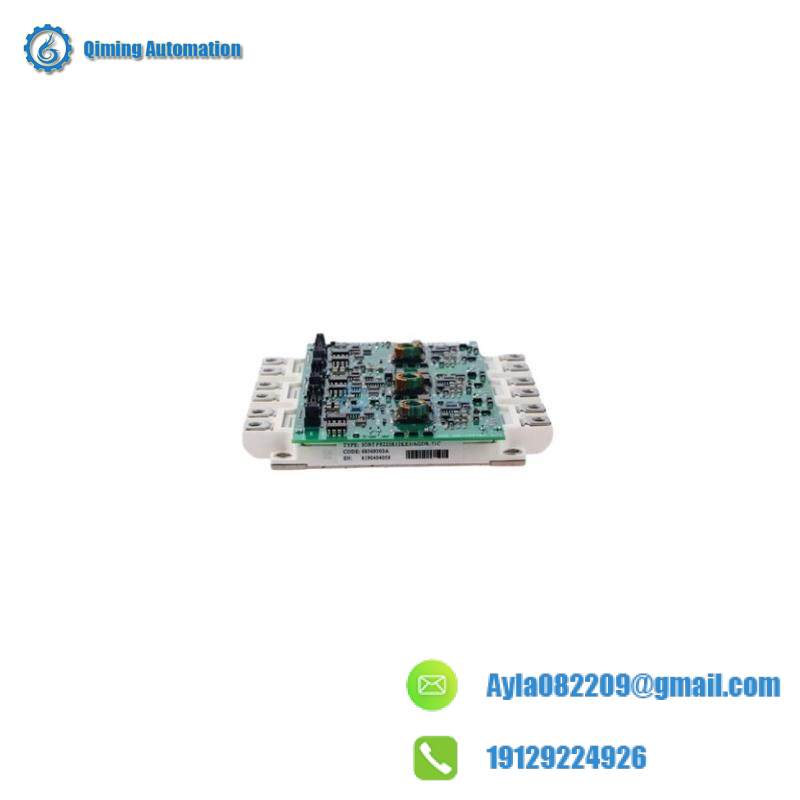

ABB FS225R12KE3/AGDR-71C S IGBT KIT – High Performance Inverters for Industrial Control Systems

Place of Origin:Switzerland

Serial No.:MPRC086444-005

Custom Processing:Yes

Brand:ABB

Item No.:MPRC086444-005

Operating Voltage:1200 V

Output Frequency:16 kHz

Certified Product:Yes

Series:FS Series

Module Type:IGBT

    The ABB FS225R12KE3/AGDR-71C S IGBT Kit is designed to enhance the performance of industrial control systems with its robust design and high-efficiency switching capabilities.

    Featuring an operating voltage of 600 V, it ensures reliable power handling under a wide range of conditions, making it suitable for various industrial applications.

    With a current rating of 1200 A, this IGBT kit can manage significant loads without compromising on efficiency or reliability.

    Its ability to switch at 30 kHz allows for faster response times and improved system dynamics, leading to enhanced overall system performance.

    The temperature range of -40°C to +125°C ensures durability in extreme environments, while the Class F insulation provides protection against high temperatures and electrical stresses.

    The TO-247 package type and thermal pad with heat sink facilitate efficient heat dissipation, reducing the risk of overheating and prolonging component life.

    The kit is equipped with 1 kΩ input resistance, ensuring minimal impact on the system when controlling the gate signal, and a response time of just 1 μs, which is critical for high-speed applications.
