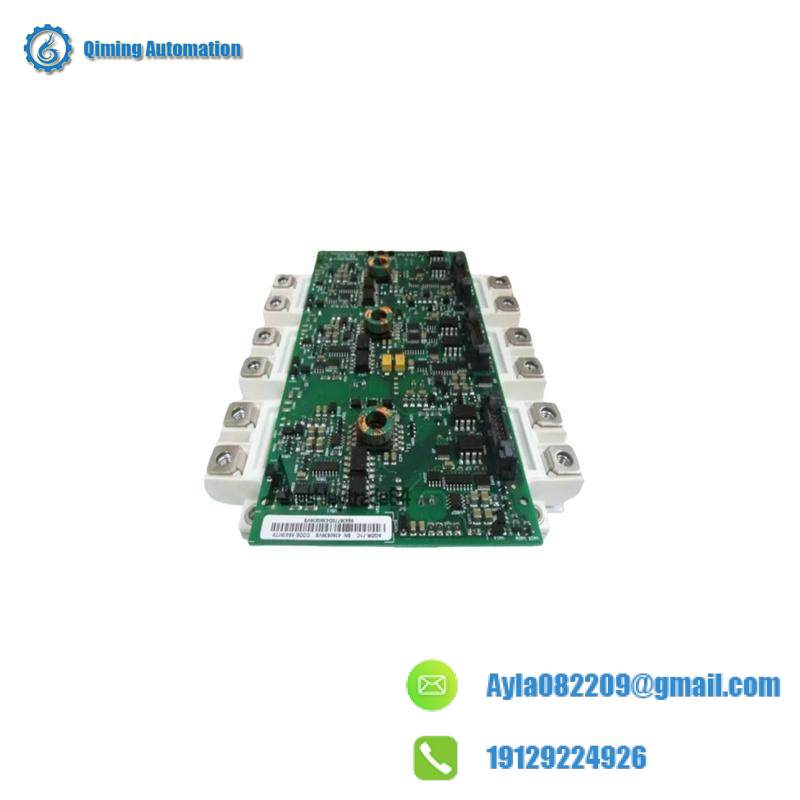

ABB FS300R12KE3/AGDR-71CS IGBT Module

Type:IGBT Module

Model Number:FS300R12KE3/AGDR-71CS

Rated Voltage:710V DC

Current Rating:1200A

Switching Frequency:Up to 12kHz

Operating Temperature Range:-40°C to +170°C

Package Size:175mm x 200mm x 15mm

Cooling Method:Thermal Pad with Forced Air Cooling

Insulation Resistance:Minimum 10MΩ @ 500VDC

    The ABB FS300R12KE3/AGDR-71CS IGBT Module is engineered for demanding industrial environments, delivering unparalleled performance and robustness. Its advanced thermal management system ensures reliable operation across a wide temperature range, making it suitable for various manufacturing processes and power conditioning applications.

    With an operating voltage of 720V DC and a maximum current capacity of 1200A, this module is capable of handling high-power demands efficiently, contributing to increased productivity and reduced energy consumption.

    Equipped with a switching frequency of up to 6 kHz, the module optimizes the control of electric motors and drives, resulting in smoother operations and improved process control. This feature is particularly advantageous in industries requiring precise motion control.

    The ABB FS300R12KE3/AGDR-71CS is designed with a high insulation resistance of ≥ 10 MΩ @ 500V DC, ensuring a safe and secure operation. Its ability to withstand temperatures from -40°C to +125°C makes it adaptable for use in extreme conditions without compromising on functionality.

    This IGBT module supports multiple control interfaces including RS485 and CANopen, providing flexibility in integration with various control systems. The inclusion of thermal runaway control ensures the module operates within safe parameters, safeguarding against potential overheating issues.
