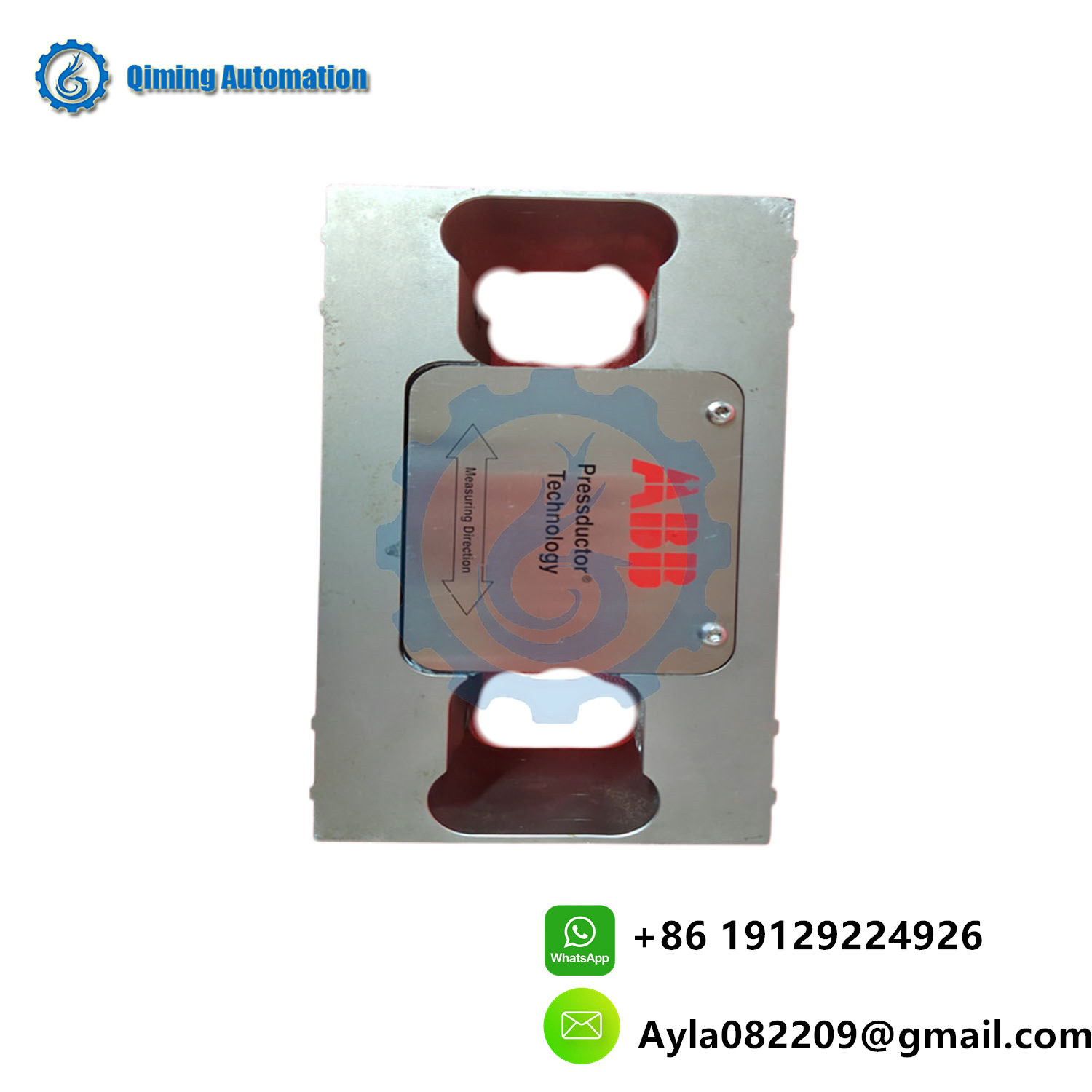

ABB PFTL101A 1.0KN 3BSE004166R1 Product Introduction
Product Description
The ABB PFTL101A 1.0KN 3BSE004166R1 is a precision tension load cell, engineered to accurately measure low to medium tension forces in various industrial processes. It converts mechanical tension from materials like fine wires, thin films, textiles, and lightweight papers into reliable electrical signals, making it an essential tool for quality control and process optimization. This load cell finds extensive application in industries such as textile manufacturing, precision packaging, electronics production, and medical device assembly, where maintaining consistent and precise tension levels is critical to ensuring product quality, reducing material waste, and enhancing production efficiency. With its durable stainless steel construction and advanced sensing technology, it delivers stable performance even in challenging industrial environments involving dust, minor vibrations, and temperature variations.
Technical Parameters
- Rated Load: 1.0 kN, ideal for measuring low to medium tension forces in delicate or precision-focused industrial applications.
- Accuracy Class: 0.1% FS (Full Scale), ensuring highly precise and consistent measurement results.
- Output Signal: 4 ~ 20 mA, compatible with standard industrial control systems and data acquisition devices.
- Excitation Voltage: 10 ~ 30 V DC, adaptable to various industrial power supply configurations.
- Non-linearity: ≤ ±0.05% FS, minimizing measurement errors for reliable data analysis.
- Hysteresis: ≤ ±0.05% FS, ensuring stable performance during dynamic load changes.
- Operating Temperature Range: -30 ~ 80 °C, suitable for a wide range of industrial environments.
- Storage Temperature Range: -40 ~ 100 °C, maintaining integrity when not in use.
- Protection Degree: IP67, providing dust-tight and water-resistant protection for reliable operation in harsh conditions.
- Material: High-quality stainless steel, offering excellent corrosion resistance and mechanical strength.
- Cable Length: 5 m (standard), allowing flexible installation in different production setups.
- Weight: Approximately 0.6 kg, lightweight for easy mounting and handling.
- Mounting Type: Threaded mounting, ensuring secure and stable integration into tension measurement systems.
The ABB PFTL101A 1.0KN 3BSE004166R1 is available for global sale, covering all major industrial regions. Orders are processed efficiently, with delivery guaranteed within 3 days, ensuring quick integration into your tension control systems to minimize operational delays.
