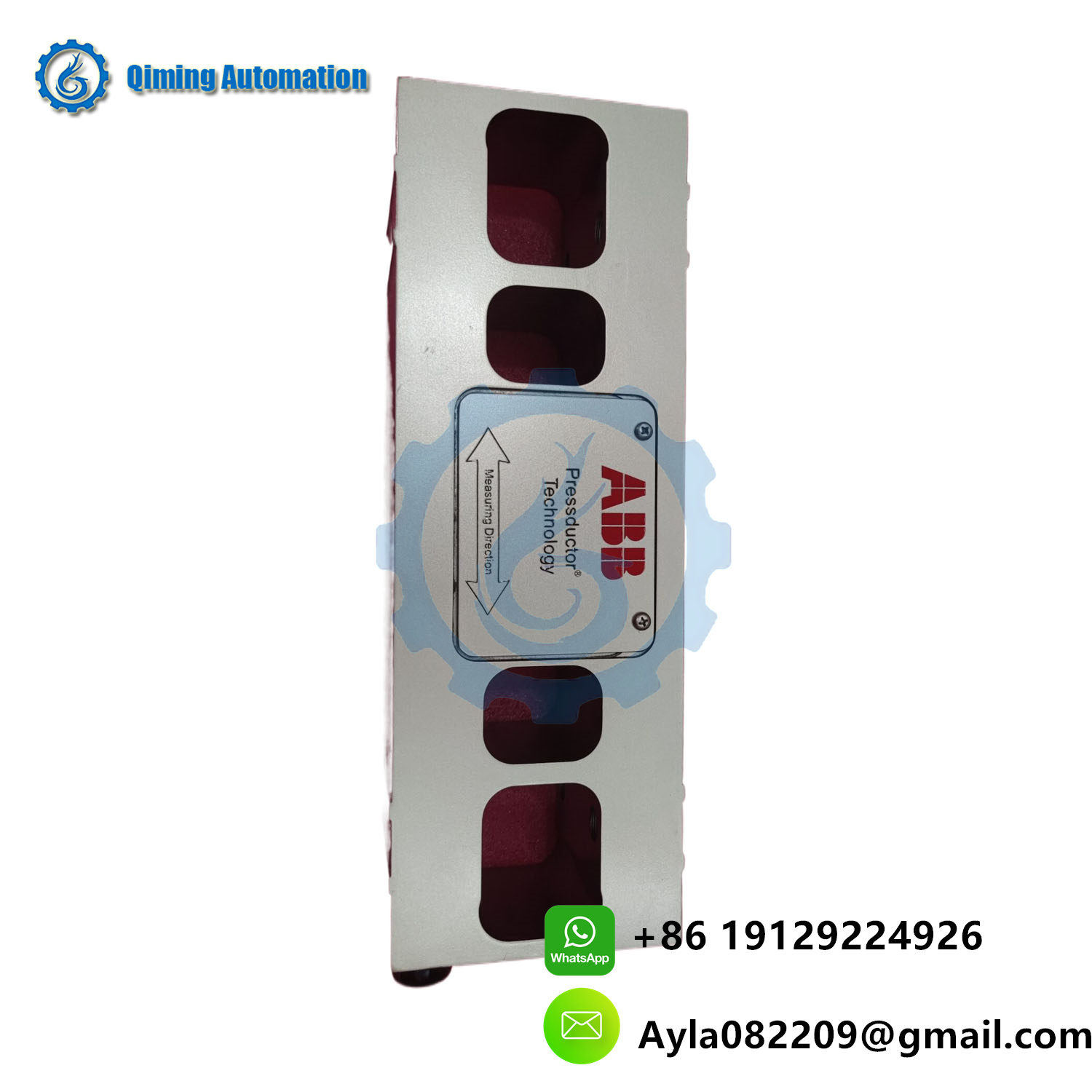

ABB PFTL101B 10KN 3BSE004197R1 Product Introduction
Product Description
The ABB PFTL101B 10KN 3BSE004197R1 is a high-precision tension load cell, engineered to accurately measure medium to high tension forces in industrial processes. It converts mechanical tension from materials such as heavy-duty wires, cables, films, and industrial fabrics into reliable electrical signals, making it a key component in quality control and process optimization. This load cell is widely used in industries including steel manufacturing, cable production, large-scale packaging, and heavy machinery, where maintaining consistent tension levels is critical to ensuring product integrity, reducing material waste, and enhancing production efficiency. With its robust stainless steel construction and advanced sensing technology, it delivers stable performance even in harsh industrial environments involving dust, vibration, and temperature fluctuations.
Technical Parameters
- Rated Load: 10 kN, suitable for measuring medium to high tension forces in industrial applications.
- Accuracy Class: 0.1% FS (Full Scale), ensuring precise and consistent measurement results.
- Output Signal: 4 ~ 20 mA, compatible with standard industrial control systems and data acquisition devices.
- Excitation Voltage: 10 ~ 30 V DC, adaptable to various industrial power supply configurations.
- Non-linearity: ≤ ±0.05% FS, minimizing measurement errors for reliable data.
- Hysteresis: ≤ ±0.05% FS, ensuring stable performance during load changes.
- Operating Temperature Range: -30 ~ 80 °C, suitable for a wide range of industrial environments.
- Storage Temperature Range: -40 ~ 100 °C, maintaining integrity when not in use.
- Protection Degree: IP67, providing dust-tight and water-resistant protection for reliable operation in harsh conditions.
- Material: High-grade stainless steel, offering excellent corrosion resistance and mechanical strength.
- Cable Length: 5 m (standard), allowing flexible installation in different production setups.
- Weight: Approximately 1.5 kg, ensuring sturdy performance while remaining manageable for mounting.
- Mounting Type: Threaded mounting, ensuring secure and stable integration into tension measurement systems.
The ABB PFTL101B 10KN 3BSE004197R1 is available for global sale, covering all major industrial regions. Orders are processed efficiently, with delivery guaranteed within 3 days, ensuring quick integration into your tension control systems to minimize operational delays.
