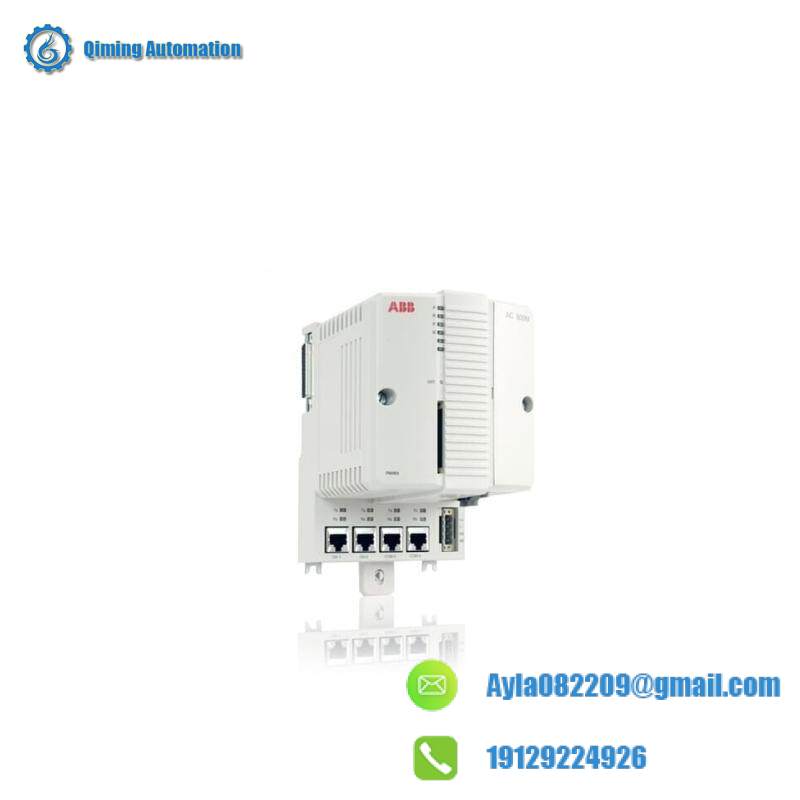

ABB PM864A 3BSE018162R1 Product Introduction
Product Description
The ABB PM864A 3BSE018162R1 is a high-performance central processing unit (CPU) module, designed to act as the core of medium to large-scale industrial automation systems. It specializes in executing complex control logic, processing real-time data from a wide range of field devices (including sensors, transmitters, and actuators), and generating precise output commands to coordinate industrial processes. This module is widely utilized in industries such as chemical manufacturing, pharmaceutical production, power distribution, and automotive assembly lines, where reliable and efficient control of complex operations is essential for ensuring product quality, operational safety, and process optimization. Equipped with robust processing capabilities and versatile communication interfaces, it seamlessly integrates with other system components, enabling centralized monitoring, data analysis, and remote control to enhance overall operational efficiency and stability.
Technical Parameters
- Processor: 32-bit dual-core processor with a clock speed of 800 MHz, ensuring efficient execution of control algorithms and multitasking.
- Memory: 512 MB RAM and 2 GB flash memory, providing sufficient space for program storage, data logging, and temporary data processing.
- Operating Voltage: 24 V DC ± 10%, compatible with standard industrial power supply systems.
- Power Consumption: Typical 20 W, balancing performance with energy efficiency.
- Operating Temperature Range: 0 ~ 60 °C, suitable for harsh industrial working environments.
- Storage Temperature Range: -40 ~ 85 °C, maintaining integrity during storage periods.
- Relative Humidity: 5% ~ 95% (non-condensing), resistant to moisture-related issues in industrial settings.
- Communication Interfaces: 2 x Ethernet ports (10/100 Mbps), 2 x RS485 ports, supporting protocols such as Modbus TCP/IP, Profibus DP, and Ethernet/IP for seamless data exchange.
- I/O Capacity: Up to 2048 digital inputs/outputs and 256 analog inputs/outputs, expandable via additional modules for larger systems.
- Execution Speed: 0.008 μs per boolean instruction, ensuring rapid response to dynamic process changes.
- Dimensions (L × W × H): 170 mm × 110 mm × 75 mm, compact for easy installation in control cabinets.
- Weight: Approximately 500 g, lightweight for convenient handling and mounting.
- Mounting Type: DIN rail mounting, compatible with standard industrial mounting systems.
- Certifications: CE, UL, cUL, meeting international safety and quality standards for industrial control equipment.
The ABB PM864A 3BSE018162R1 is available for global sale, covering all major industrial regions. Orders are processed promptly, with delivery guaranteed within 3 days, ensuring quick integration into your automation systems to minimize operational delays.
