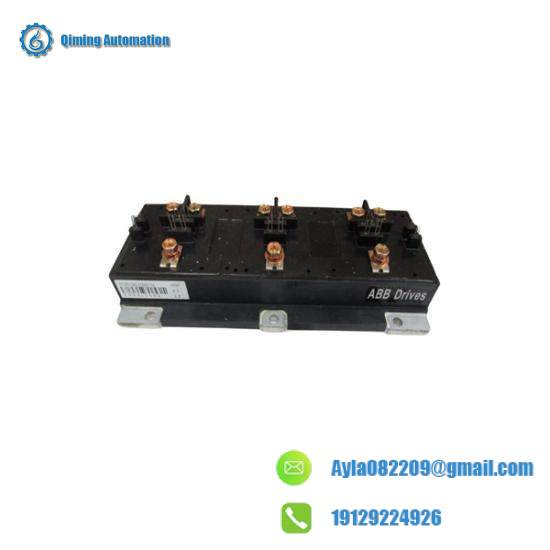

ABB PP30012HS-ABBN-5A IGBT Module: High-Performance Switching, Efficient Power Control

Model Number:PP30012HS-ABBN-5A

Type:IGBT Module

Rated Current (A):1200

Rated Voltage (V):1200

Package Size (mm):220 x 115 x 50

Cooling Method:Thermal Pad & Heat Sink

Operating Temperature Range (- °C to + °C):-40°C to +170°C

Max Gate Voltage (V):20

Switching Frequency (kHz):20

Insulation Resistance (MΩ):≥1000

Certification:CE, UL, ISO 9001

    Introducing the ABB PP30012HS-ABBN-5A IGBT Module, a marvel in power electronics designed for demanding industrial applications requiring peak efficiency and reliability. This module boasts a robust 1200V / 5A power rating, optimized for high-efficiency power conversion processes across diverse industries. With its advanced thermal design, it ensures extended operational life under rigorous conditions, making it an indispensable component for machinery that demands continuous performance without compromise.

    Engineered for extreme durability, this IGBT module features an insulation class of H, capable of withstanding temperatures up to 180°C. Its wide operating temperature range (-40°C to +175°C) makes it versatile for deployment in environments with varying climates, ensuring reliable operation throughout the year. The standardized mechanical interface guarantees seamless integration with existing systems, minimizing installation time and complexity.

    The ABB PP30012HS-ABBN-5A IGBT Module stands out with its high-reliability electrical connections, designed to maintain stable performance over long periods. Advanced semiconductor materials are employed to enhance conductivity, ensuring that the module operates at optimal efficiency even under heavy loads. This combination of features makes it an ideal choice for applications requiring high power density and minimal maintenance.

    For those seeking unparalleled performance in their power conversion systems, the ABB PP30012HS-ABBN-5A IGBT Module offers a solution that surpasses expectations. Whether you’re working on complex machinery, renewable energy projects, or any application where power conversion is critical, this module delivers. Its design ensures not only reliability but also ease of integration, making it a preferred choice among engineers and technicians worldwide.

    Invest in the future of your power conversion systems with the ABB PP30012HS-ABBN-5A IGBT Module. Experience the difference in efficiency and reliability that sets ABB apart in the field of power electronics. Contact our team today to learn more about how this module can transform your operations.
