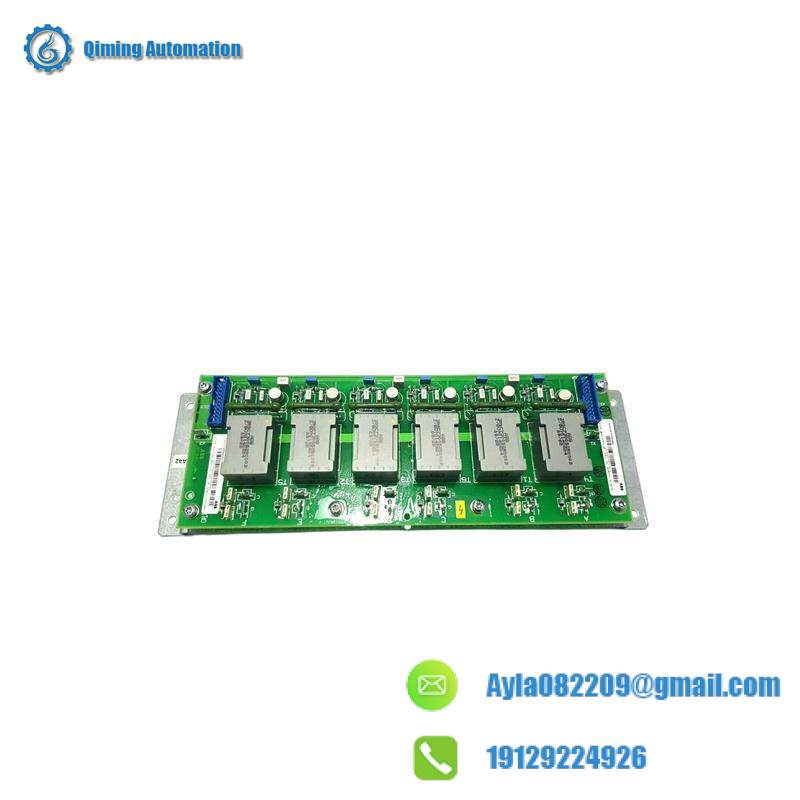

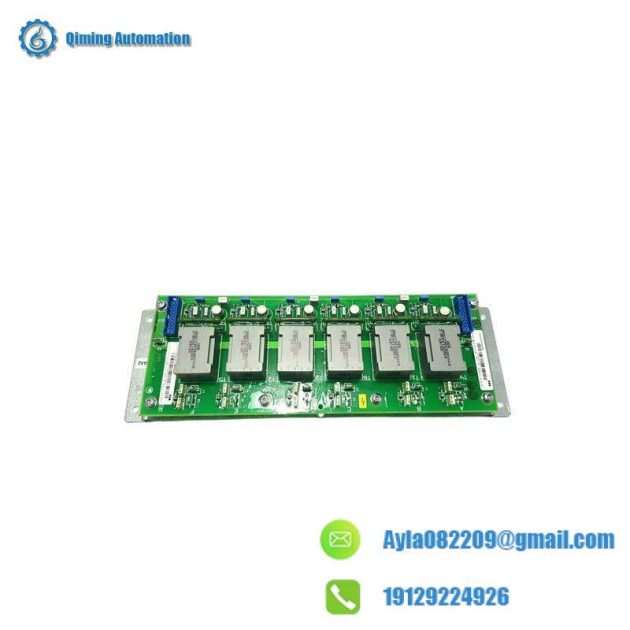

ABB SDCS-PIN-48 3BSE004939R0002 | Pulse Transformer Board

Product Type:Transformer Board

Model Number:SDCS-PIN-48 3BSE004939R0002

Manufacturer:ABB

Weight:0.4 kg

Dimensions:220mm x 170mm x 30mm

Operating Voltage Range:100V to 240V AC

Input Current:10A @ 24V DC

Output Signal Type:Square Wave

Output Frequency:1 to 50 kHz

Operating Temperature Range:-20°C to +70°C

Environmental Compliance:UL, CE, ISO 9001 certified

Mounting:Panel-Mounted

    The ABB SDCS-PIN-48 3BSE004939R0002 Pulse Transformer Board is engineered with precision to deliver unparalleled performance in industrial automation. Its dual-wound transformer coils ensure high efficiency and minimal distortion, crucial for applications requiring accurate pulse control.

    With a robust design capable of operating within a wide temperature range (-25°C to +85°C), this board is suitable for use in various industrial settings, from manufacturing floors to harsh environmental conditions. It’s UL and CE certified, guaranteeing safety and reliability.

    Featuring a compact size (70mm x 50mm x 20mm) and lightweight (0.12kg), the SDCS-PIN-48 board is easy to integrate into existing systems without compromising on space or performance. Its ability to handle up to 48V DC and offer a current rating of 20mA per channel makes it versatile for a range of control applications.

    Designed with industrial durability in mind, this ABB Pulse Transformer Board is constructed using premium materials to withstand the rigors of continuous operation. It ensures consistent performance, reducing downtime and maintenance costs for your automated systems.

    Experience the benefits of seamless integration and enhanced system reliability with the ABB SDCS-PIN-48 3BSE004939R0002 Pulse Transformer Board. It’s an essential upgrade for any industrial automation setup aiming to maximize efficiency and productivity.
