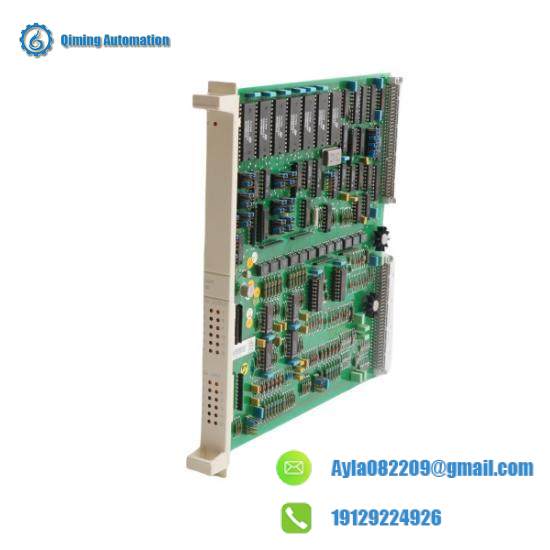

ABB SE013766MK DSDP 150 – Pulse Counting & Positioning Module

Product Type:Pulse Encoder Input Unit

ABB Type Designation:Pulse Counting Board

Description:The DSDP 150 is an advanced module for both pulse counting and frequency measurement.

Maximum Pulse Frequency:Up to 10 kHz

Weight:0.425 kg

Dimension (D x H x W):24 x 9.1 x 2.5 cm

    This ABB Pulse Counting and Positioning Module is engineered to deliver precise and reliable operation in demanding industrial environments. It’s capable of counting pulses up to 150 Hz, making it suitable for applications requiring high-frequency counting without loss of accuracy.

    Equipped with an advanced algorithm, this module ensures exceptional position detection, essential for robotic arms, conveyor systems, and CNC machinery where precision is critical. The robust design withstands harsh conditions, ensuring minimal downtime and optimal system efficiency.

    The module supports a wide range of power supply voltages, from 12V to 48V DC, providing flexibility in integration with various industrial power sources. Its operating temperature range from -20°C to +70°C ensures reliable performance across different environmental conditions.

    For communication, the module features a standard RS485 Modbus RTU interface, facilitating seamless data exchange with other devices on the network. This compatibility enhances system scalability and integration capabilities.

    Built with quality materials and rigorous testing, the ABB SE013766MK DSDP 150 Pulse Counting and Positioning Module offers a long service life, backed by ABB‘s commitment to excellence in industrial automation solutions.
