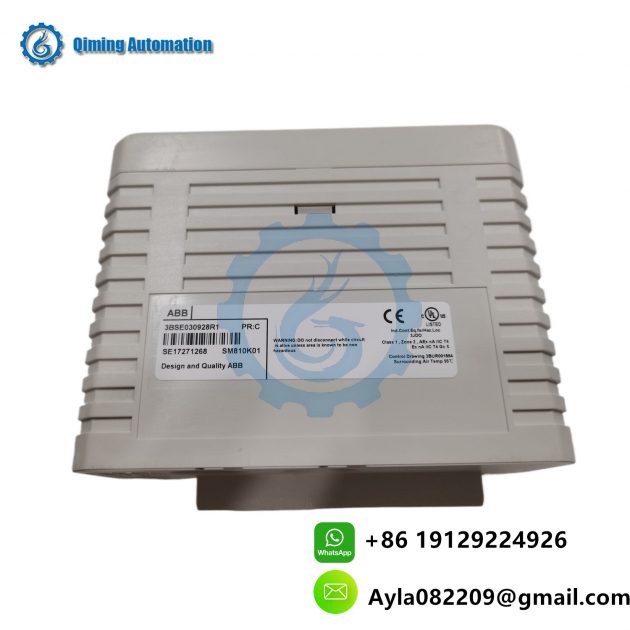

ABB SM810K01 3BSE030928R1 Product Introduction
Product Description
The ABB SM810K01 3BSE030928R1 is a high-performance safety module, specifically designed to enhance the reliability of safety-critical industrial automation systems. It serves as a core component in safety instrumented systems (SIS), monitoring safety-related signals from emergency stops, safety gates, and light curtains, and triggering protective actions to prevent hazardous events. This module is widely used in industries such as oil and gas, chemical processing, and power generation, where compliance with strict safety standards (like IEC 61508) is mandatory. With its redundant design and fail-safe architecture, it ensures that safety functions remain operational even in the event of component failures, minimizing the risk of accidents and ensuring uninterrupted protection of personnel and equipment. Its seamless integration with ABB’s automation platforms makes it a versatile choice for both new installations and safety system upgrades.
Technical Parameters
- Safety Integrity Level (SIL): SIL 3, meeting the highest safety requirements for critical applications.
- Number of Safety Inputs: 8 channels, accepting 24 V DC signals from various safety devices.
- Safety Outputs: 4 dual-channel safety relays, ensuring redundant control of protective actions.
- Response Time: ≤ 10 ms, enabling rapid reaction to safety violations.
- Operating Voltage: 24 V DC ± 15%, compatible with standard industrial safety power supplies.
- Power Consumption: Typical 12 W, balancing safety performance with energy efficiency.
- Operating Temperature Range: -10 ~ 60 °C, suitable for harsh industrial environments.
- Storage Temperature Range: -40 ~ 85 °C, maintaining integrity during storage and transportation.
- Relative Humidity: 5% ~ 95% (non-condensing), resistant to moisture-related issues.
- Isolation: 2.5 kV galvanic isolation between inputs, outputs, and power supply, enhancing system safety.
- Dimensions (L × W × H): 130 mm × 100 mm × 65 mm, compact for installation in control cabinets.
- Weight: Approximately 350 g, lightweight for convenient handling and mounting.
- Mounting Type: DIN rail mounting, compatible with standard industrial mounting systems.
- Diagnostic Features: Built-in self-testing and LED indicators for fault detection and status monitoring.
- Communication Interface: RS485 port with Modbus RTU, enabling integration with safety controllers and HMI systems.
- Certifications: CE, UL, TÜV, complying with international safety standards including IEC 61508 and EN ISO 13849-1.
The ABB SM810K01 3BSE030928R1 is available for global sale, covering all major industrial regions. Orders are processed promptly, with delivery guaranteed within 3 days, ensuring quick integration into your safety systems to enhance operational protection without delay.
