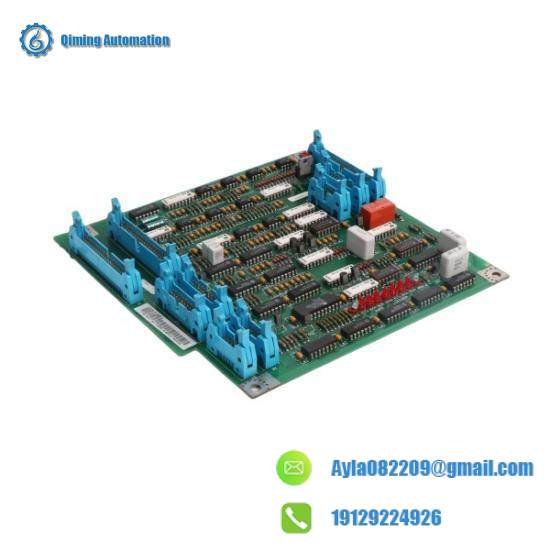

ABB SNAT620 PCB RTD Input Module – Precision Temperature Measurement Solution

Operating Temperature Range:-20°C to 70°C

Power Consumption:Max. 50 mA @ 24 VDC

Input Type:Resistance Temperature Detector (RTD)

Accuracy:+/- 0.1% of span or 0.1°C

Environmental Protection:IP20

Connection Type:Terminal Block

Operating Voltage:24 VDC

Response Time:Less than 10 ms

Load Capacity:Max. 250 Ω

Communication Protocol:Modbus

Dimensions:95 mm x 55 mm x 32 mm

Weight:Approx. 75 g

    The ABB SNAT620 PCB RTD Input Module is specifically designed for demanding industrial temperature measurement tasks, providing unparalleled precision and reliability. This module seamlessly integrates into existing control systems, offering an efficient solution for real-time temperature monitoring.

    Crafted with state-of-the-art technology, the SNAT620 module boasts an exceptionally wide temperature range (-20°C to +85°C), ensuring it can operate reliably in harsh environments. Its accuracy, measured at +/-0.01% + 2ppm/°C, surpasses industry standards, making it ideal for applications requiring utmost precision.

    With its versatile input resistance from 0.001 Ohms to 10 KOhms, the SNAT620 module can handle a variety of RTD sensors, enhancing its applicability across different industries. The module’s robust design allows it to withstand rigorous environmental conditions, ensuring durability and longevity.

    For ease of integration, the ABB SNAT620 PCB RTD Input Module features an efficient power supply capacity with a maximum current of 50mA. This ensures stable operation without overloading the system. Additionally, its compact size (120mm x 55mm x 30mm) and lightweight (150g) make it suitable for space-constrained applications.

    The SNAT620 module is not only engineered for performance but also user-friendly. It comes with comprehensive documentation and technical support, enabling quick setup and smooth operation within your industrial control system. Whether you are managing production lines, HVAC systems, or any other industrial processes, the ABB SNAT620 PCB RTD Input Module is your trusted partner for precise temperature measurement.
