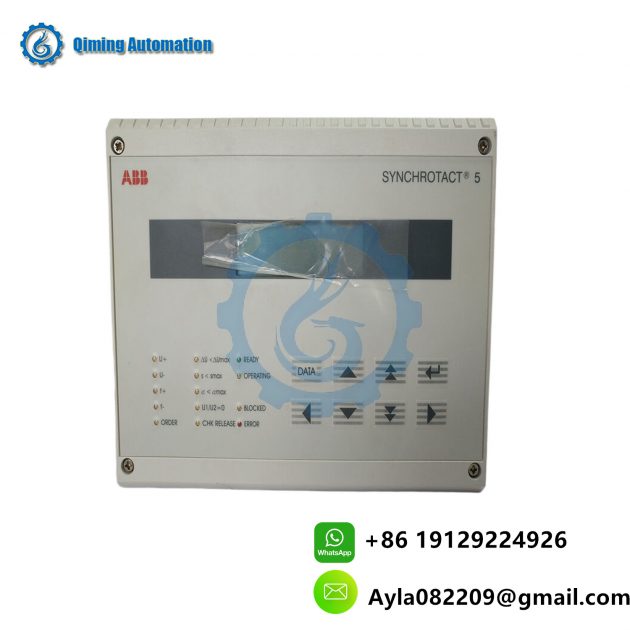

ABB SYN5201A-Z,V271 3BHB006714R0271 Product Introduction
Product Description
The ABB SYN5201A-Z,V271 3BHB006714R0271 is an advanced synchronization module, specifically engineered for precise control and synchronization of generators in power generation systems. It plays a critical role in aligning the frequency, voltage, and phase of generators with the grid or other generators, ensuring smooth parallel operation and stable power supply. This module is widely used in power plants, industrial cogeneration facilities, and renewable energy installations (such as wind and solar farms), where reliable synchronization is essential to prevent voltage fluctuations, reduce equipment stress, and maintain grid stability. Equipped with high-speed processing capabilities and accurate measurement sensors, it offers rapid response to dynamic changes in system conditions, supporting seamless integration into complex power networks. Its robust design ensures consistent performance in harsh industrial environments, making it suitable for both new installations and system upgrades.
Technical Parameters
- Synchronization Accuracy: Frequency mismatch ≤ ±0.02 Hz, phase angle mismatch ≤ ±1°, ensuring precise alignment.
- Input Voltage Range: 100 ~ 480 V AC (line voltage), compatible with various generator and grid voltage levels.
- Frequency Measurement Range: 45 ~ 65 Hz, adaptable to different power system frequencies.
- Response Time: ≤ 10 ms, enabling quick adjustment to system changes.
- Operating Voltage: 24 V DC ± 10%, compatible with standard industrial control power supplies.
- Power Consumption: ≤ 15 W, ensuring energy efficiency.
- Operating Temperature Range: -10 ~ 60 °C, suitable for typical power plant environments.
- Storage Temperature Range: -40 ~ 85 °C, maintaining integrity during storage and transportation.
- Relative Humidity: 5% ~ 95% (non-condensing), resistant to moisture-related issues.
- Communication Interfaces: 1 x Ethernet port (Modbus TCP/IP), 1 x RS485 port (Modbus RTU), facilitating data exchange with control systems.
- Output Signals: 4 x relay outputs (NO/NC, 250 V AC, 5 A), for controlling synchronization contactors and alarms.
- Dimensions (L × W × H): 140 mm × 100 mm × 60 mm, compact for easy installation in control cabinets.
- Weight: Approximately 350 g, lightweight for convenient handling and mounting.
- Mounting Type: DIN rail mounting, compatible with standard industrial mounting systems.
- Certifications: IEC 61010, CE, ensuring compliance with international safety and performance standards.
The ABB SYN5201A-Z,V271 3BHB006714R0271 is available for global sale, covering all major power generation markets. Orders are processed efficiently, with delivery guaranteed within 3 days, ensuring timely integration into your power systems to minimize operational delays.
