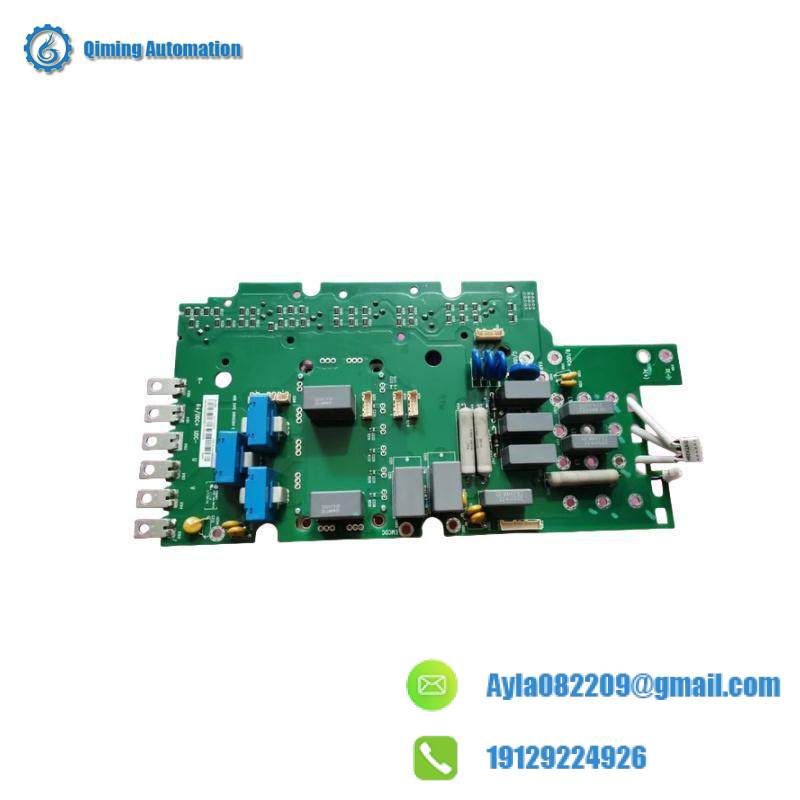

ABB ZMAC-541 Inverter Driver Board

Product Type:Inverter Driver Board

Model Number:ZMAC-541

Control Technology:Advanced Vector Control

Output Power:Up to 500 kW

Operating Voltage Range:380-480 V AC

Frequency Range:40-60 Hz

Communication Interface:Modbus RTU, Ethernet

Control Modes:Speed Control, Torque Control, Position Control

Protection Rating:IP21

Dimensions (WxHxD):173 x 85 x 90 mm

Weight:2.5 kg

Operating Temperature Range:-20°C to +60°C

    The ABB ZMAC-541 Inverter Driver Board is engineered with precision to deliver unparalleled performance in industrial settings. It is equipped with a high-speed microcontroller for rapid and accurate processing, ensuring seamless integration with various industrial machinery and systems.

    This robust inverter driver board supports a power handling capacity up to 250 HP, making it suitable for heavy-duty applications. Its versatile AC voltage range of 380-480V caters to diverse industrial environments, ensuring reliability across different settings.

    Featuring a Modbus RTU communication interface, the ZMAC-541 facilitates easy connection and data exchange with other devices in the automation network, enhancing system interoperability and control.

    With an IP20 protection rating, this inverter driver board is designed to withstand dust and light splashes of water, providing reliable operation in less than ideal conditions. Its compact dimensions and manageable weight make it a convenient choice for installation in various industrial spaces.

    Operated within a temperature range of -10°C to +50°C, the ABB ZMAC-541 ensures stable performance throughout the year, from cold workshops to hot production lines. Its ability to store in temperatures ranging from -20°C to +60°C allows for flexible handling during transportation and storage.
