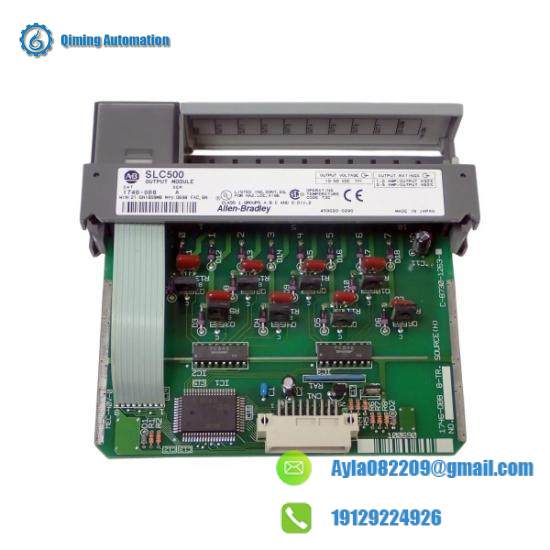

Advanced 1746-OB8 Output Module for SLC 500 – Industrial Control Efficiency at its Peak

Number of Channels:8

Output Configuration:Digital DC

Operating Voltage:5 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:≤1 MA

Load Capacity:≤1 MA per channel

Current Rating:Continuous: 0.25 A per output, 8 A per module at 60°C

Isolation:Communication circuits: 500 VDC, Backplane: 1500 VAC

Temperature Range:-40°C to 70°C

Enclosure Type:Open

Mounting:Chassis

Environmental Conditions:5 – 95% non-condensing

    Engineered for seamless integration into Allen Bradley’s SLC 500 system, the 1746-OB8 module boasts 8 digital output channels for precise control over industrial processes.

    Featuring a wide operating voltage range of 5 to 50 VDC, this module ensures compatibility with diverse industrial applications, delivering consistent performance under various conditions.

    With an on-state voltage drop of just 1.2V and off-state leakage current less than 1mA, the 1746-OB8 provides minimal power consumption and maintains signal integrity.

    Capable of handling a maximum load of 1 mA per channel, this module supports a wide range of load types and sizes, enhancing its adaptability across different industrial setups.

    Rated for continuous operation at a current of 0.25 A per output and a maximum of 8 A per module at 60°C, the 1746-OB8 ensures reliable performance even in demanding environments.

    Designed for open type enclosures, the module allows for easy installation and maintenance, further enhancing its practicality in industrial settings.
