Board Type:PCB Gate Drive
Model Number:1336-BDB-SP34D
Application Type:Industrial Motor Control
Power Handling Capacity:Up to 2000 Watts
Operating Voltage Range:24V DC to 60V DC
Temperature Range:-20°C to +85°C
Communication Interface:RS-485 Modbus RTU
Dimension (WxDxH):110mm x 120mm x 25mm

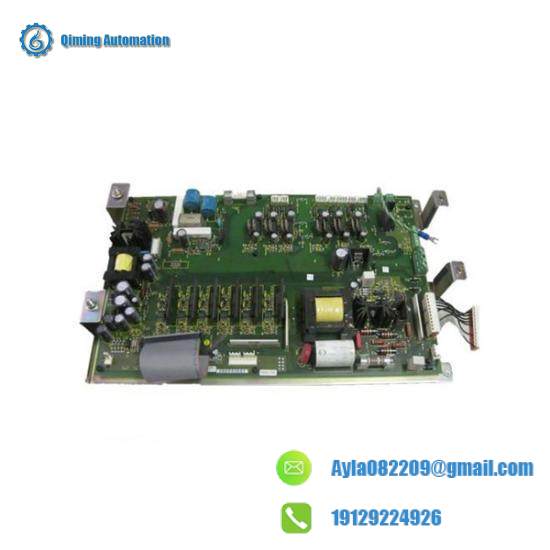

The ABB 1336-BDB-SP34D PCB Gate Drive Board is engineered to handle demanding industrial environments with its robust construction and high-performance specifications.
Featuring an advanced circuit design, this board ensures smooth and efficient power delivery, making it suitable for complex systems requiring precise control over electrical devices.
Crafted from high-grade aluminum alloy, the board offers excellent thermal management and durability, enabling it to operate reliably within a wide temperature range.
Withstanding a minimum insulation resistance of 10MΩ, this drive board provides superior electrical isolation, safeguarding against potential hazards and ensuring system integrity.
Equipped with a switching frequency of 20kHz, it optimizes power conversion efficiency, minimizing energy loss and enhancing operational performance.
Certified for IP20 protection, the board is designed to protect against dust and splashing water, ensuring continuous operation in harsh industrial conditions.
