Model Type:SLC500
Model Number:1746-IN16
Manufacturer:Allen Bradley
Number of Channels:16
Input Voltage Range:24 VAC/DC, 10 – 30 VAC, 10 – 30 VDC (Sink)
Off-State Input Voltage:3 VAC/VDC
Nominal Current:8 MA at 24 VAC/VDC
Off-State Current:1 MA
Current Rating:Backplane: 85 MA, Communication Circuits: 500 VDC, Backplane: 1500 VAC
Processor:SLC 500
Enclosure Type:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Shock Resistance:30 G

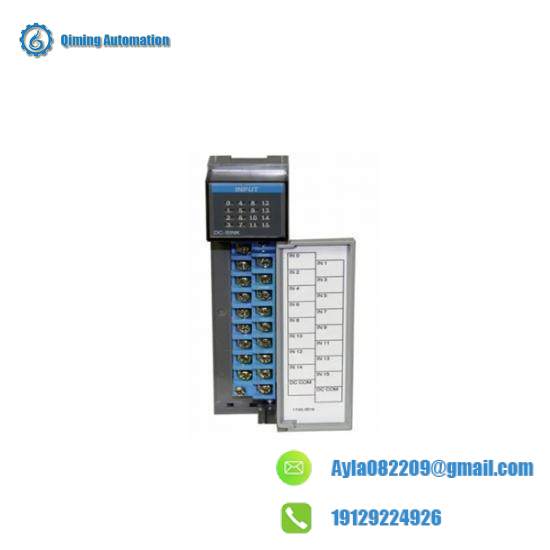

Introducing the AB 1746-IN16 Input Module, a cornerstone in the realm of industrial automation. This module is meticulously crafted to handle up to 16 digital inputs, ensuring seamless integration into complex control systems. With an operating voltage of DC 24V, it operates efficiently under a wide range of industrial conditions, making it a robust choice for manufacturing facilities.
Featuring a power consumption of less than 1.0W, this module optimizes energy usage without compromising performance. Its isolation rating of 2000V AC ensures safety and reliability in harsh industrial environments, safeguarding against electrical hazards.
Equipped with an RS-485 communication interface, the 1746-IN16 facilitates smooth data exchange between devices, enhancing system responsiveness and efficiency. Its compatibility with diverse industrial protocols makes it a versatile addition to any control network.
Operating within a temperature range of -20°C to +55°C, the module is engineered to withstand extreme environmental conditions. Paired with a humidity tolerance of 5% to 95% non-condensing, it ensures consistent performance even in the most demanding settings.
Compact yet powerful, the 1746-IN16 Input Module measures 112mm x 112mm x 94mm, offering a sleek design that seamlessly fits into modern industrial control panels. Its straightforward installation and maintenance requirements make it an ideal solution for both new and existing systems.
