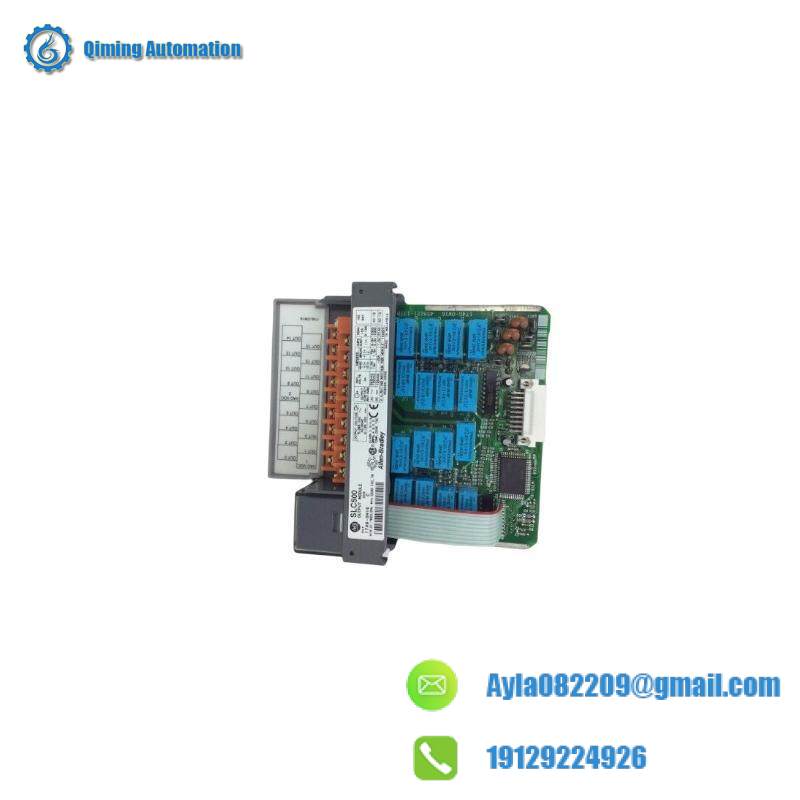

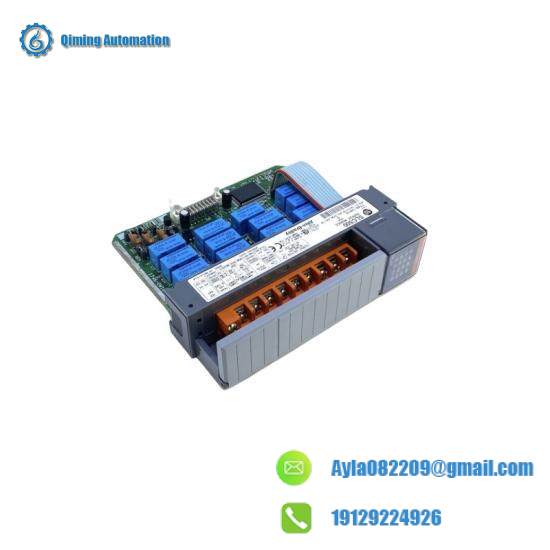

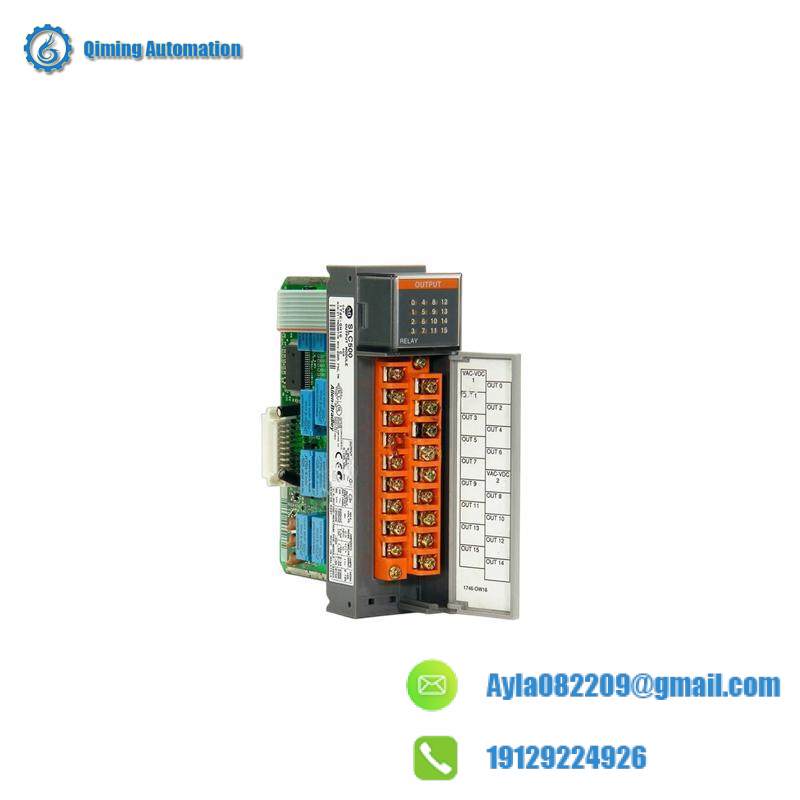

Allen-Bradley 1746-OW16 Digital Output Module for Industrial Automation

Model:1746-OW16

Brand:AB

Series:SLC 500

Module Type:Discrete Output Module

Nominal Input Voltage:24VDC

Input Voltage Range:10-50 VDC

Backplane Current Consumption:0.270 A

Voltage Range:10-50 Volts DC

Number of Channels:16

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Continuous Current Per Output:0.25 A at 60°C

Continuous Current Per Module:4 A at 60°C

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC, Processor: SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95%

    The AB 1746-OW16 is an essential component for industrial automation applications requiring robust digital outputs.

     Designed for use in SLC 500 series controllers, this module offers 16 channels capable of handling a wide input voltage range, ensuring seamless integration into various control systems.

     Its high reliability and efficiency make it suitable for a variety of industries including manufacturing, automotive, and energy.

     The module features an open-type enclosure, allowing for easy installation and maintenance, while its robust design withstands harsh environmental conditions.

     With precise voltage regulation and low leakage currents, the 1746-OW16 ensures accurate and consistent performance, making it a reliable choice for demanding applications.

     Whether you need precise control over machinery or complex process automation, the AB 1746-OW16 delivers exceptional functionality and ease of use.
