Model Type:Analog Input Module
Manufacturer:Allen Bradley
Model Number:1746sc-INI4vi
Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC Or 7.5 VAC RMS (Max)
Input Range:-10 To 10 VDC – 1 LSB
Absolute Input Current:-30 To 30 MA (Max)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95%

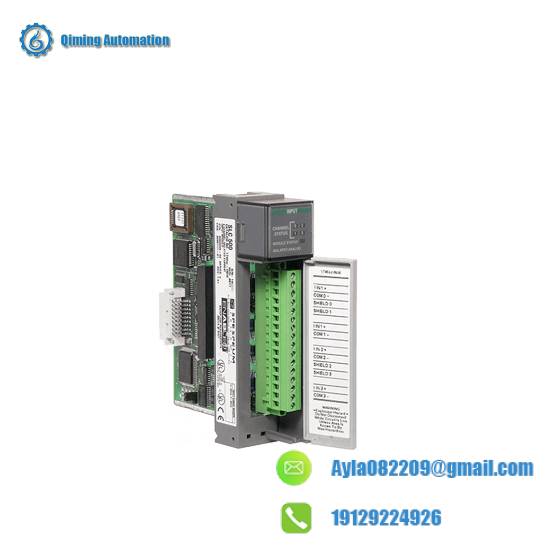

The 1746sc-INI4vi Analog Input Module is specifically engineered for seamless integration into SLC 500 systems, enhancing their performance with high-precision analog input capabilities.
It offers 4 independent channels capable of handling a wide range of input signals from 0-10 VDC and 4-20 mA, ensuring accurate data acquisition for critical industrial processes.
With an impressive accuracy of ±0.05% of full scale, this module guarantees reliable and precise measurements, crucial for maintaining operational efficiency in demanding environments.
Equipped with an RS-485 communication interface, it supports various communication rates, allowing for flexible connectivity options and seamless data transfer within industrial networks.
Operating within a temperature range of -20°C to +60°C and a humidity range of 5% to 95% non-condensing, this module is designed to withstand harsh industrial conditions, ensuring robust performance under extreme environmental challenges.
