Manufacturer:Allen Bradley
Model Number:1747-L542
Series:SLC 5/04
Memory:32 KB
Backup:Flash
Interface:DH+ And RS-232 Ports
Mounting:Chassis
Output:Backplane: 1 MA At 5 VDC
Response Time:Typical Scan: 0.9 MS/Kword, Bit Execution: 0.37 MIC-SEC, I/O Scan: 0.255 MS
Programming Devices:RSLogix 5000 Software
Enclosure:Open Type
Display:Status LEDs
Dimensions:Length: 145 MM, Width: 35 MM, Height: 142 MM
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% Non-Condensing Humidity
Shock:30 G
Vibration:0.015 IN (Displacement), 2.5 G (Acceleration)
Certifications:GOST certified, KC certified, MARINE certified, UL listed, cUL listed, CE marked, C-Tick certified

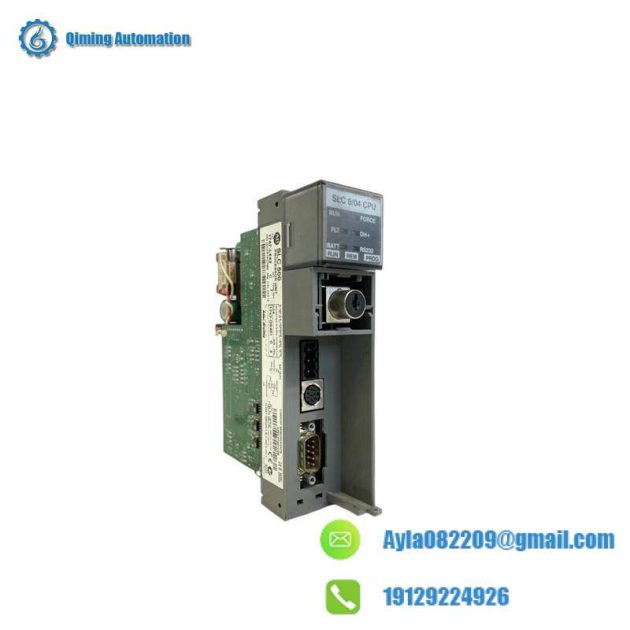

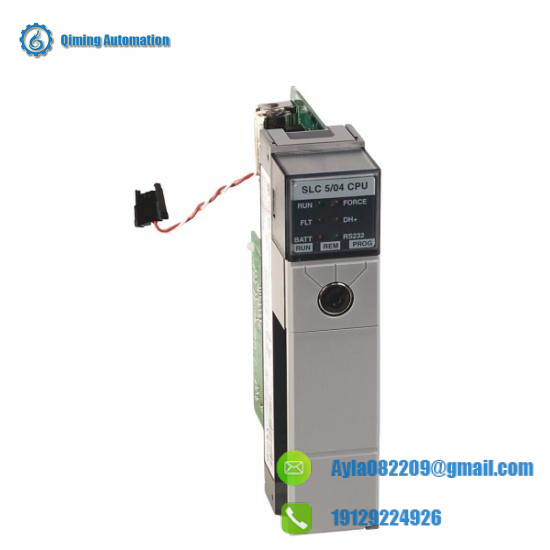

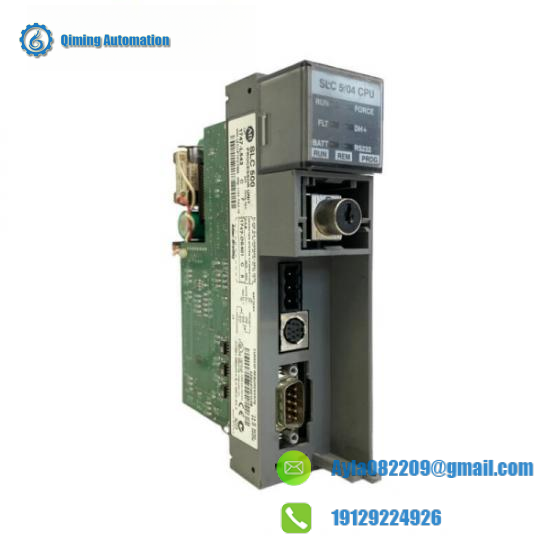

The Allen Bradley 1747-L542 is a high-performance modular processor unit designed for material handling, HVAC control, assembly operations, and small process control applications. It integrates seamlessly with other components within the SLC 5/04 family, offering robust automation capabilities.
With a memory capacity of 32 KB, this processor unit supports extensive data storage and quick access, ensuring smooth operation in demanding industrial environments. The use of flash backup ensures reliable data retention even in power interruptions.
The 1747-L542 is equipped with multiple interface options including DH+ and RS-232 ports, providing versatile connectivity and communication options. Its open-type enclosure design facilitates easy installation and maintenance, making it suitable for various settings.
The unit’s status LEDs provide clear visual feedback on operational status, enhancing troubleshooting efficiency. With dimensions of 145 mm in length, 35 mm in width, and 142 mm in height, it fits neatly into existing control systems without taking up excessive space.
This processor unit is built to withstand harsh industrial conditions, including temperature ranges from 0 to 60°C and shock resistance up to 30 G. Its non-condensing humidity tolerance of 5-95% further enhances its reliability in diverse environments.
