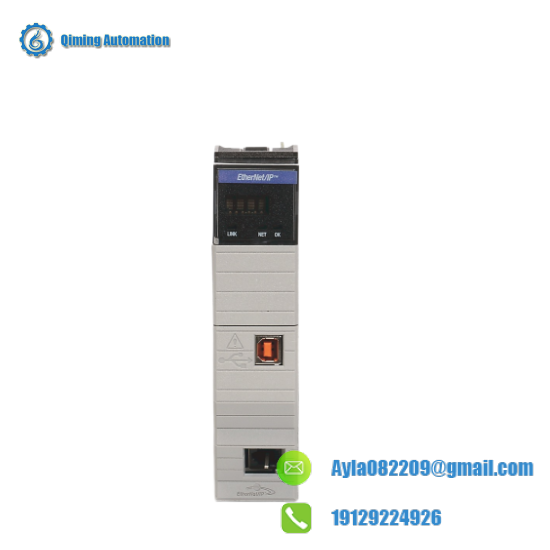

Allen-Bradley 1756-EN2T ControlLogix Ethernet/IP Bridge Module – Seamless Integration & Enhanced Connectivity

Model Type:Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-EN2T/D

Communication Protocol:EtherNet/IP

Enclosure Type:Open Type

Temperature Range:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection:Ethernet

Mounting:Chassis

Communication Speed:10/100 MBPS

Power Supply:3 MA at 24 VDC

    The Allen-Bradley 1756-EN2T/D ControlLogix Bridge Module is designed to enhance the performance of industrial automation systems by providing robust Ethernet/IP connectivity. This modular solution is ideal for integrating legacy systems with modern Ethernet/IP networks, ensuring smooth data exchange and efficient operation.

    Equipped with advanced communication protocols, this module seamlessly bridges the gap between different network architectures, enabling real-time data processing and enhanced control over industrial processes. Its open type enclosure ensures durability and reliability in various environmental conditions.

    Featuring high isolation levels, the module ensures minimal interference and maintains high data integrity across the network. Its compatibility with shielded or unshielded twisted pair cables provides flexibility in installation and deployment scenarios.

    Operating within a temperature range of 0 to 60 degrees Celsius, the 1756-EN2T/D module is designed to withstand harsh industrial environments. It offers continuous isolation at 30 volts, ensuring protection against electrical disturbances and maintaining operational safety.

    With its vibration resistance of 2 G and shock resistance up to 30 G, this module is suitable for use in dynamic and demanding industrial settings. It supports Ethernet interfaces, allowing for easy integration with existing infrastructure and facilitating smooth data transmission.
