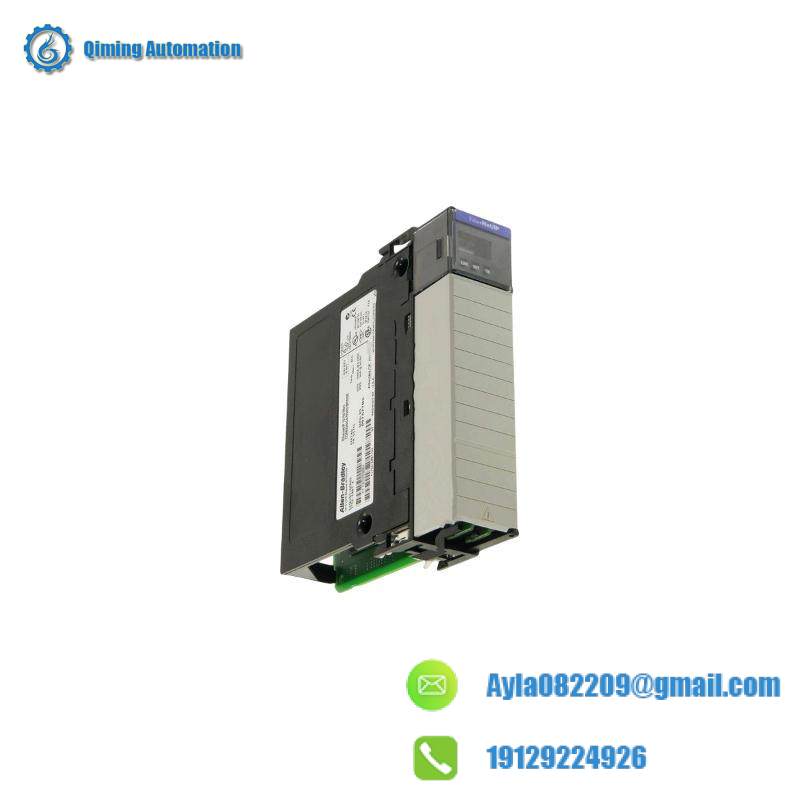

Allen-Bradley 1756-ENBT/A Ethernet/IP Communication Bridge Module

Model Type:Communication Bridge Module

Model Number:1756-ENBT/A

Manufacturer:Allen Bradley

Communication Protocol:Ethernet/IP

Connection Interface:Ethernet

Mounting:Chassis

Communication Speed:10/100 Mbps

Power Supply:3 MA at 24 VDC

Enclosure Type:Open Type

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Isolation:Continuous, 30 V

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

USB Port:Available

Compliance Standards:IEEE 802.3 compliant shielded or unshielded twisted pair cables

    The Allen Bradley 1756-ENBT/A module is specifically designed to enhance the capabilities of ControlLogix systems by bridging EtherNet/IP networks, thereby enabling real-time data exchange and control over industrial automation processes.

    Featuring an open type enclosure, this module supports easy installation and maintenance, ensuring reliable operation in various industrial environments.

    With its robust design, the 1756-ENBT/A can withstand harsh conditions, including temperature fluctuations and vibrations, making it suitable for use in demanding industrial settings.

    The module supports high-speed communication, facilitating quick response times and improved system efficiency, which is crucial for optimizing production lines and enhancing overall operational effectiveness.

    Engineered with advanced isolation and environmental protection features, this module ensures stable performance and minimizes potential disruptions caused by external factors, guaranteeing continuous and dependable operation.
