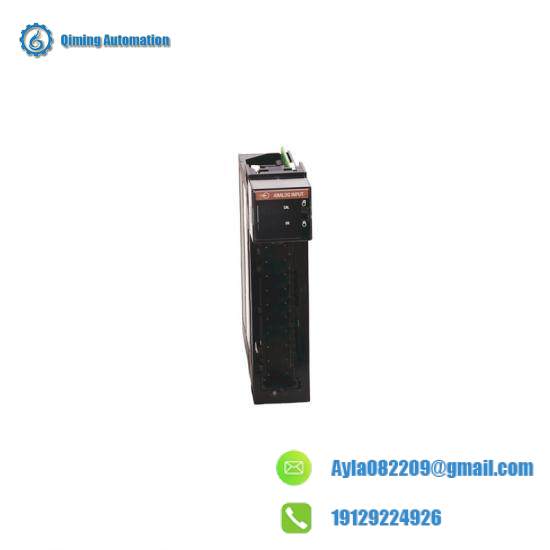

Allen-Bradley 1756-IF6I ControlLogix 6 Point Isolated Analog Input Module

Manufacturer:Allen-Bradley

Model Number:1756-IF6I

Module Type:Analog Input

Number of Channels:6

Isolation:Yes

Analog Input Range:-10 to +10 VDC

Accuracy:±0.1% of full scale

Supply Voltage:24 VDC

Communication Interface:ControlNet

Operating Temperature:-40°C to +70°C

Power Consumption:Max. 1.5 W

Environmental Rating:IP20

Mounting Type:Panel

    The Allen-Bradley 1756-IF6I ControlLogix 6-Point Isolated AI Module is designed to meet the stringent requirements of modern industrial automation systems, providing reliable and accurate analog signal acquisition.

    Each channel offers high isolation (1000 Vrms) from the power supply and other channels, ensuring robust performance in noisy environments.

    With its wide signal range of -20 to +60 VDC and an accuracy of ±0.25% of full scale, this module ensures precise data acquisition for critical applications.

    Featuring a sampling rate up to 1 kHz, it supports fast response times, ideal for dynamic processes requiring high-frequency measurements.

    The module’s open type enclosure and compatibility with ControlLogix systems simplify integration into existing industrial networks, enhancing system efficiency and flexibility.
