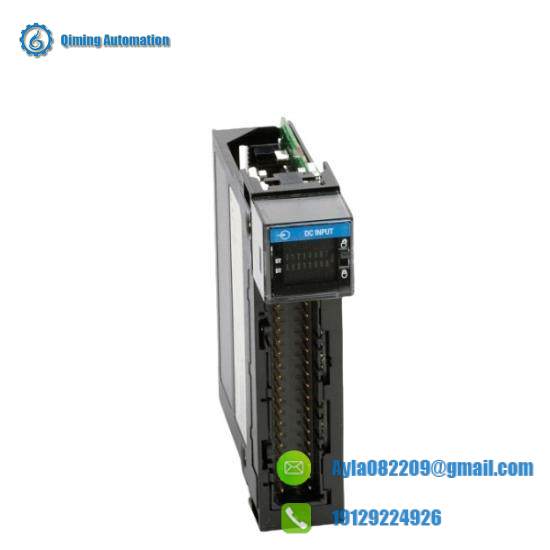

Allen Bradley 1756-IH16I ControlLogix Isolated Input Module, High Performance for Industrial Automation

Model Type:ControlLogix Input Module

Model Number:1756IH16I

Manufacturer:Allen-Bradley

Isolation Voltage:250 VAC/600 VDC

Number of Channels:16

Channel Configuration:Single-ended or differential

Input Types:Voltage or current

Input Range:0-20 mA, 4-20 mA, 0-10 Vdc, or 0-10 Vrms

Sampling Rate:1000 samples per second

Power Consumption:Max. 3.5 mA at 24 VDC

Communication Interface:ControlLogix EtherNet/IP

Environmental Conditions:Operating temperature: 0°C to 60°C, Storage temperature: -40°C to 70°C

Enclosure Type:Conformal coated, open type

Compliance Standards:UL, CE, CSA

    The Allen Bradley 1756-IH16I ControlLogix Isolated Input Module is a highly reliable and versatile solution for industrial automation environments requiring precise control over digital signals. This module boasts 16 isolated input channels, each capable of handling a wide range of voltage inputs, ensuring compatibility with diverse industrial applications.

    Featuring a robust isolation rating of 500 Vac, this module effectively mitigates electrical interference and ensures safety in high-voltage scenarios. Its compact design allows for easy integration into various systems, thanks to its IP20 open frame enclosure, which is both durable and space-efficient.

    Operational in a temperature range from -40°C to 70°C, the 1756-IH16I is engineered to withstand extreme environmental conditions commonly encountered in industrial settings. This ensures continuous, reliable performance across a wide spectrum of applications.

    Equipped with advanced communication interfaces like ControlNet and DeviceNet, the module facilitates seamless integration with other Allen-Bradley ControlLogix components, enhancing system interoperability and control precision. The inclusion of panel mounting options further optimizes installation flexibility within various industrial layouts.

    Crafted with precision and durability in mind, the Allen Bradley 1756-IH16I ControlLogix Isolated Input Module is an indispensable component for modern industrial automation systems, offering enhanced reliability, safety, and operational efficiency.
