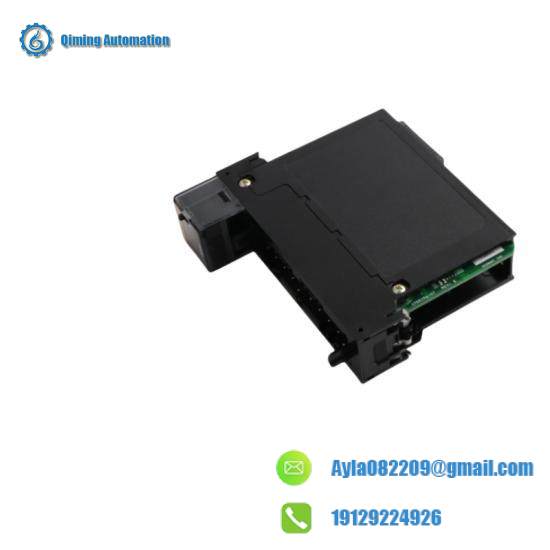

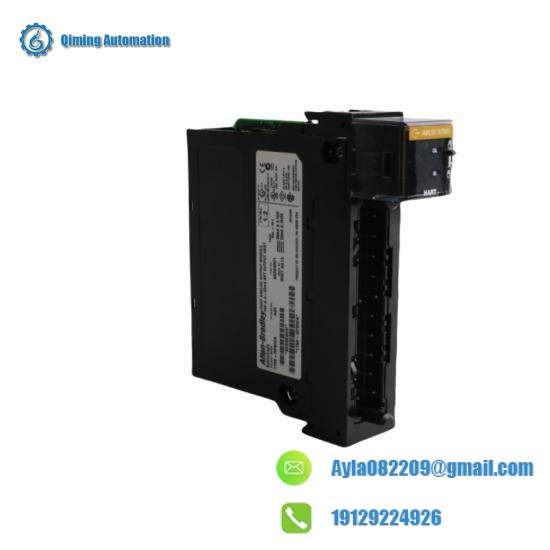

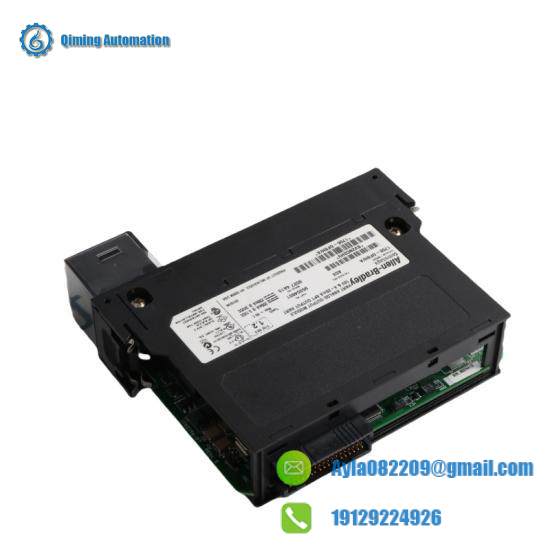

Allen-Bradley 1756-OF8H ControlLogix 8 Pt Analog Output Module with HART Interface

Model Type:ControlLogix

Model Number:1756-OF8H

Manufacturer:Allen-Bradley

Weight:1.00 lbs

I/O Module:Yes

Input Type:Analog

Channels:8

Interface:HART

Voltage Range:Differential

Current/Voltage:Current/Voltage

Points:8

Data Formats:Multiple

Input Ranges:Current and Voltage

Module Filter:Included

Real Time Sampling:Enabled

Under Range and Over Range Detection:Yes

Process Alarms:Provided

Rate Alarm:Supported

Wire-off Detection:Included

Communication Protocol:Highway Addressable Remote Transducer (HART)

    The Allen-Bradley 1756-OF8H is engineered for high performance and reliability in demanding industrial environments. Its HART interface allows seamless integration with leading process control systems, enhancing efficiency and connectivity.

    This module supports both differential voltage and current inputs, providing flexibility in various industrial settings. It offers a choice of three data formats and multiple current and voltage input ranges, catering to diverse application requirements.

    Equipped with advanced features such as real-time sampling, under and over range detection, and process alarms, this module ensures accurate and timely output control, optimizing operational performance.

    With built-in wire-off detection and rate alarm functionalities, the 1756-OF8H minimizes downtime and enhances safety by promptly alerting operators to critical issues.

    Mounting in a ControlLogix chassis, it requires either a removable terminal block (RTB) or a Bulletin 1492 wiring interface module (IFM), ensuring easy installation and integration within existing systems.
