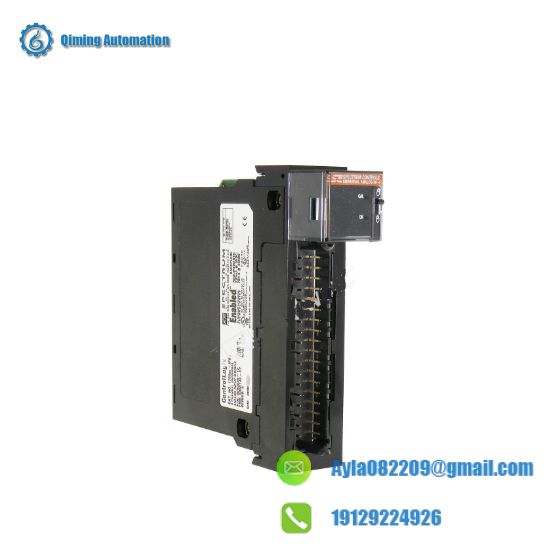

Allen-Bradley 1756SC-IF8U ControlLogix Analog Input Module

Manufacturer:Allen-Bradley

Model:1756SC-IF8U

Type:ControlLogix Analog Input Module

Quantity of Input Channels:8

Input Range:-10VDC to +10VDC or 0VDC to +24VDC

Accuracy:+/- 0.5% Full Scale

Sampling Rate:Up to 1000 samples per second

Communication Protocols:[“ControlNet”,”EtherNet/IP”]

Power Consumption:Max 6.2 Watts

Operating Temperature:-20°C to +60°C

Dimensions:1.00 lbs (Approx. 0.45 kg)

Connector Type:36-pin

Configuration:Supports HART Communication

    The Allen-Bradley 1756SC-IF8U ControlLogix Analog Input Module excels in providing accurate and reliable signal acquisition for industrial applications. With its robust design, it seamlessly integrates into ControlLogix systems, enabling efficient data processing and control.

    Featuring 8 differential inputs, this module ensures precise measurement and monitoring of physical signals such as temperature, pressure, and flow rates, crucial for maintaining operational efficiency and safety in various industries.

    Equipped with advanced communication capabilities, the module supports both ControlNet™ and EtherNet/IP™ protocols, ensuring compatibility and seamless integration within complex industrial networks. This enhances system scalability and connectivity, facilitating real-time data exchange and control.

    The 1756SC-IF8U boasts a high sampling rate of up to 10 kHz, allowing for rapid and accurate signal capture without compromising on performance. Its low power consumption ensures energy efficiency, reducing operational costs and environmental impact.

    Designed with user convenience in mind, the module offers easy installation and configuration, minimizing downtime and simplifying maintenance processes. Its compact size and lightweight design make it an ideal choice for space-constrained environments, enhancing flexibility in deployment.
