Input Voltage (AC):230-480 Vrms, 3-phase
Nominal Input Current (AC):14A
Root Mean Square Input Frequency (AC):47-63 Hz
Bus Overvoltage:810Vdc
Shunt On:800Vdc
Continuous Output Power @ 480VAC:10.0kW
Continuous Output Power @ 230VAC:5.0kW
Weight:Approximately 10.44kg (22.96lbs)
Maximum Power Loss:350 watts + dissipative shunt
Shunt Resistance:40 ohms
Interface Medium:RS232/RS485 with DeviceNet
Multi-turn Absolute Encoders:Supports external logic power and maintains position accuracy

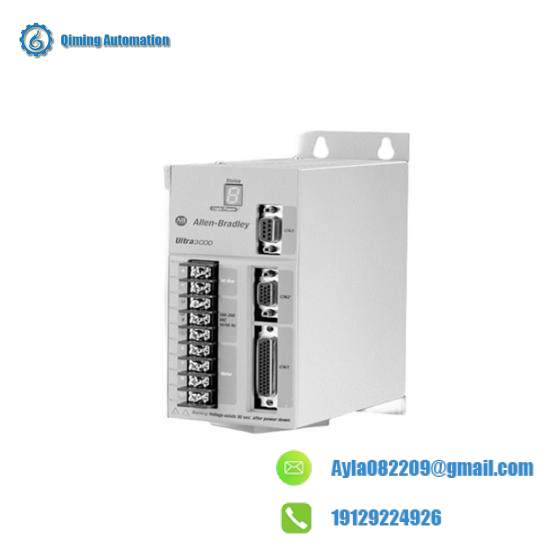

The Allen-Bradley 2098-DSD-HV100-SE Servo Drive is a key component in achieving unparalleled precision and reliability in demanding industrial settings. Designed with a robust and compact design, it is engineered to handle high-voltage inputs efficiently without compromising performance or stability.
Featuring an internal shunt resistance of 40 Ohms, this drive ensures optimal power distribution and minimizes voltage drop, delivering consistent performance across various operating conditions. The 2098-DSD-HV100-SE is specifically optimized for continuous operation, ensuring that it can withstand heavy-duty tasks without overheating or degradation of performance over time.
This servo drive is equipped with advanced control algorithms that enable seamless integration with PLC systems and other automation technologies, making it an ideal choice for complex machinery and assembly lines where high accuracy and responsiveness are crucial. Its compatibility with various communication protocols, including DeviceNet, further enhances its versatility in modern industrial setups.
With its ability to handle a wide range of input voltages and frequencies, the Allen-Bradley 2098-DSD-HV100-SE Servo Drive is suitable for a multitude of applications, from robotic arms and conveyor systems to CNC machines and factory automation processes. Its modular design facilitates easy installation and maintenance, minimizing downtime and maximizing productivity.
Backed by Allen-Bradley’s commitment to quality and reliability, the 2098-DSD-HV100-SE Servo Drive undergoes rigorous testing to ensure it meets the highest industry standards. This includes shock resistance tests up to 15 g at 11 ms half-sine, guaranteeing its durability and reliability in challenging environments. Investing in this drive means investing in long-term performance and cost-effectiveness for your industrial operations.
