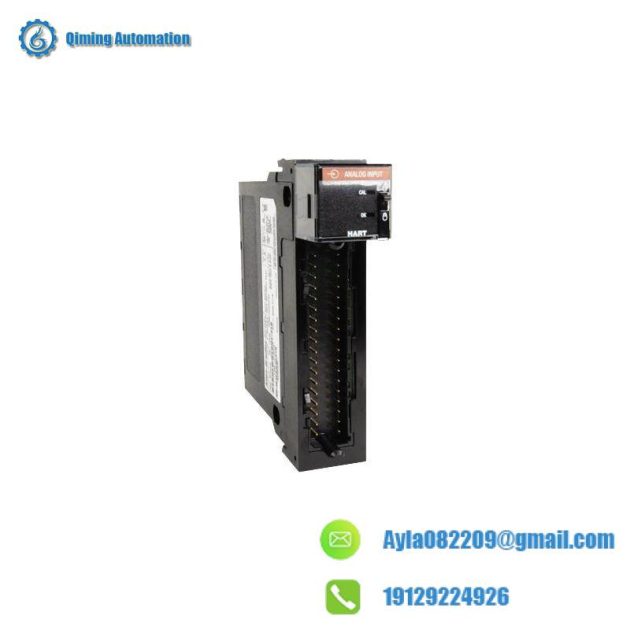

Allen-Bradley AB 1756-IF16H/A ControlLogix 16-Point Analog Hart Interface Module

Number of Inputs:16 Points

Input Type:Analog Differential Voltage or Current

Interface:HART Communication Protocol

Current Input Range:4 to 20 mA

Voltage Input Range:0 to 10 VDC

Data Format Options:Three

Multiple Ranges Support:Yes

Module Filter:Available

Real-Time Sampling:Yes

Alarm Detection:Process, Rate, Wire-off

Communication Speed:Fast and Reliable

Enclosure Type:Open Type

Rfi Suppression:Radiated up to 2000 MHz

Basic Insulation:30 V (Continuous)

    The Allen-Bradley 1756-IF16H/A ControlLogix 16-Point HART Input Module is engineered for seamless integration into complex industrial control systems, offering high precision and reliability in data acquisition.

    Each channel supports differential voltage or current inputs, providing flexibility for various industrial applications, including temperature, pressure, and flow measurements.

    Equipped with an HART interface, this module facilitates bidirectional communication between the process instruments and the control system, enabling setup, calibration, and diagnostics without the need for physical access to each device.

    With support for multiple data formats and input ranges, users can tailor the module to their specific requirements, enhancing adaptability across different industries.

    Featuring real-time sampling and advanced detection capabilities, the module ensures accurate and timely data transmission, crucial for efficient plant operations and maintenance.

    Designed with built-in filters and wire-off detection, the module minimizes errors and downtime, contributing to enhanced system reliability and safety.
