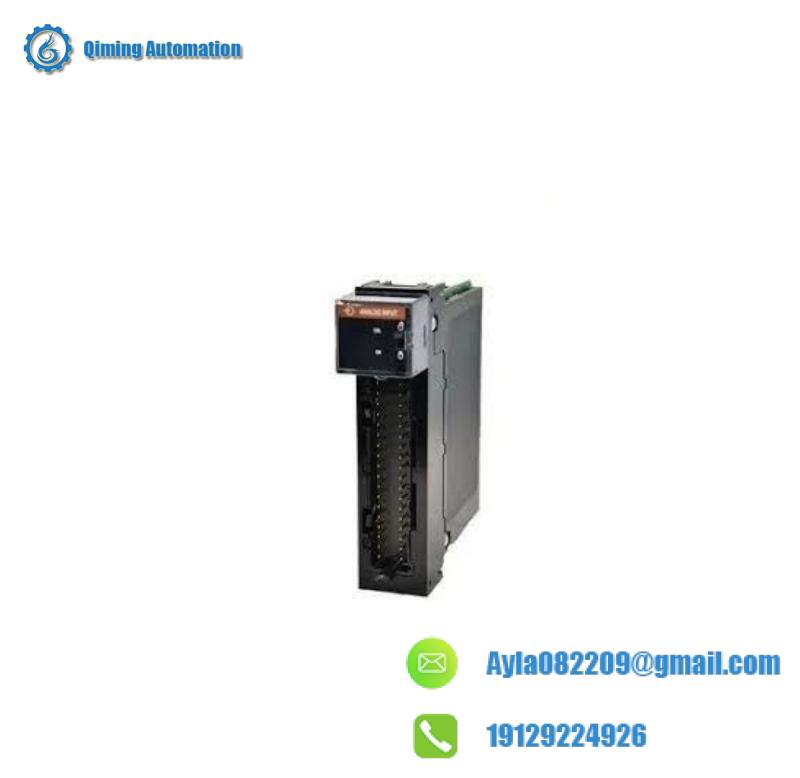

Allen-Bradley AB 1756-IF8 ControlLogix Analog Input Module

Model Number:1756-IF8

Type:ControlLogix

Input Capacity:8 Points

Interface:Analog

Channel Configuration:8 Single-Ended Inputs

Module Filter:Present

Real-time Sampling:Available

Range Compatibility:Multiple Current and Voltage Input Ranges

Alarms:Process, Rate, Under Range, Over Range, Wire-off Detection

Communication Protocol:Highway Addressable Remote Transducer (HART)

Power Consumption:Typical: 0.5W

    The Allen-Bradley AB 1756-IF8 ControlLogix Analog Input Module is an essential component for real-time data collection in industrial automation systems. It supports differential voltage or current inputs, making it suitable for a wide range of applications from process control to machine monitoring.

    With its high accuracy and fast sampling rate, this module ensures reliable data acquisition, critical for maintaining operational efficiency and quality control in manufacturing processes.

    Featuring a durable design with conformal coating for protection against harsh industrial environments, the module is built to withstand challenging conditions while delivering consistent performance.

    Compatible with the ControlNet™ communication protocol, the AB 1756-IF8 facilitates seamless integration within a ControlLogix system, enabling efficient data exchange with other components and devices.

    This module is part of Allen-Bradley’s renowned line of ControlLogix products, known for their reliability, scalability, and ease of use. It is designed to be easily mounted in a ControlLogix chassis, offering flexibility in system setup and expansion.
